Stanley Aoife BACK AF0504

Genuine Waterford Stanley Spare Part

Waterford Stanley Stove: Stanley Aoife

Part Number: AF0504

Description: BACK

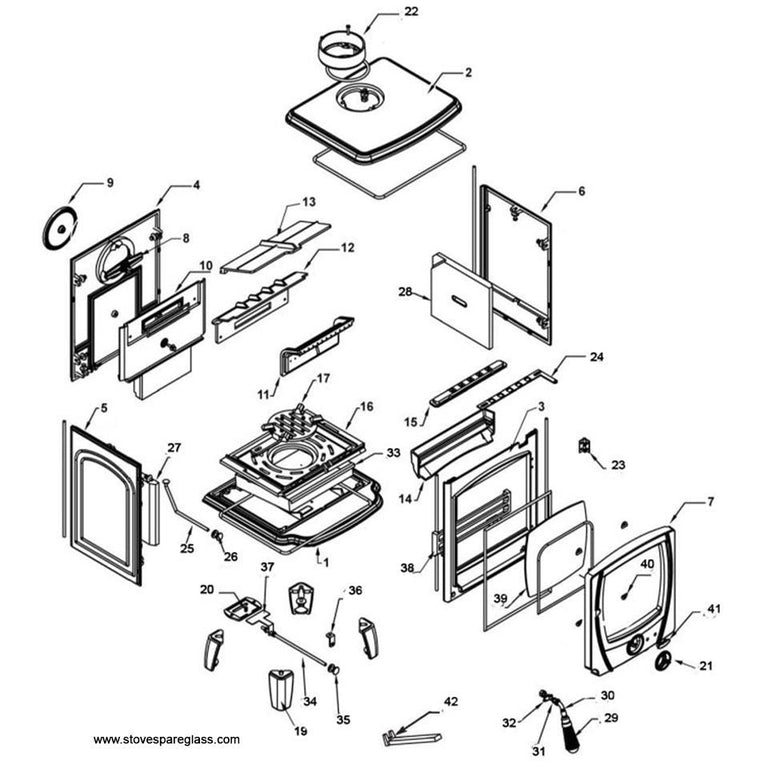

Number on Exploded Drawing: 4

Delivery to your door throughout all of UK and Ireland

Click here to view pop out drawing

Click here for pdf part numbers and drawing

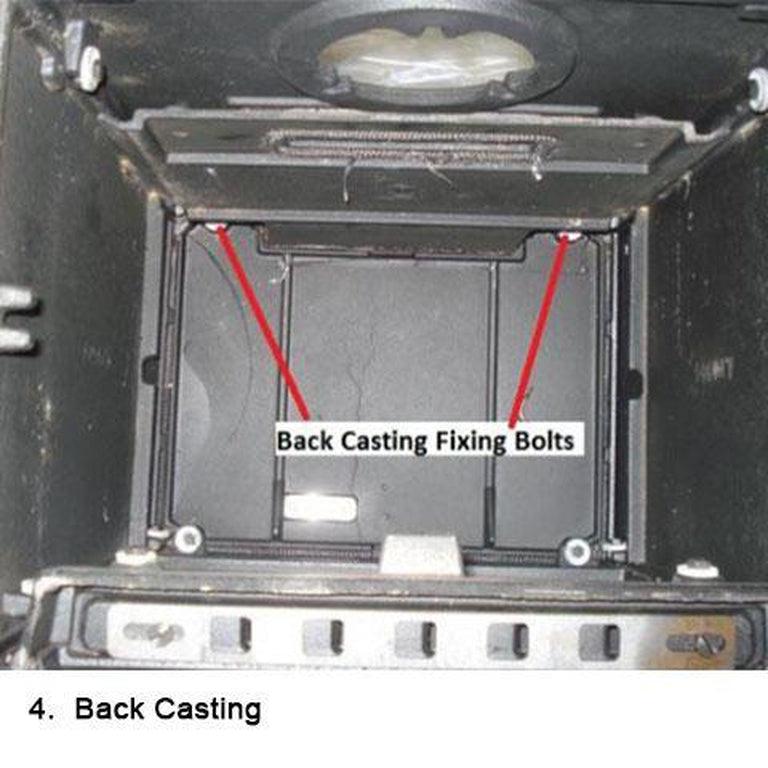

Remove both side panels (5 & 6), the Middle Baffle assembly (11 & 12) & Back Brick (10). Remove the back casting (4) from the base (1) by removing the two M6 x 30mm hex head bolts (with two 7mm ID x 22mm OD washers).  When refitting all of the above, check all seals and replace with 12mm tape as required.
