Stanley Aoife BACK BRICK AF0511

Genuine Waterford Stanley Spare Part

Waterford Stanley Stove: Stanley Aoife

Part Number: AF0511

Description: BACK BRICK

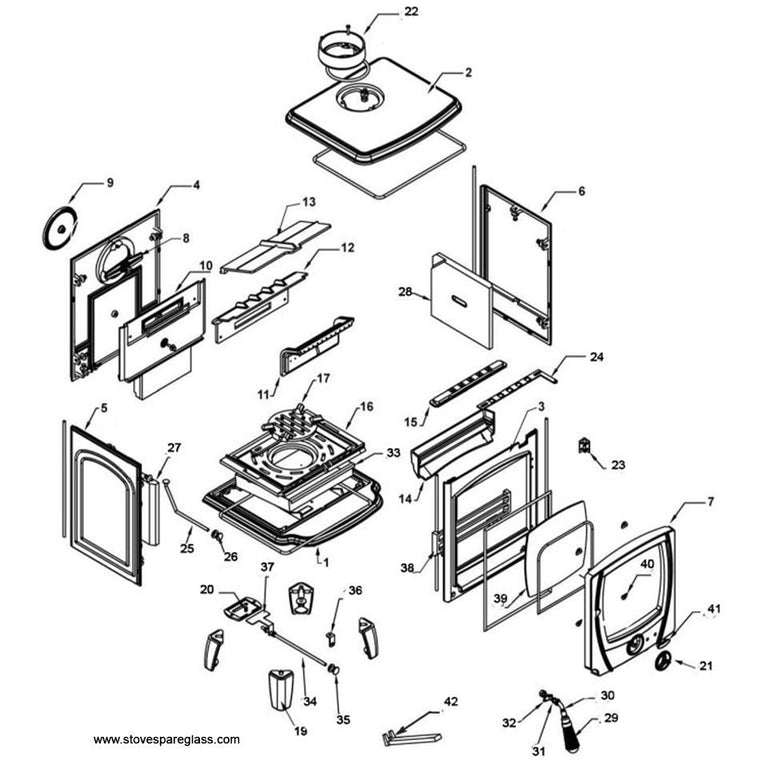

Number on Exploded Drawing: 10

Delivery to your door throughout all of UK and Ireland

Click here to view pop out drawing

Click here for pdf part numbers and drawing

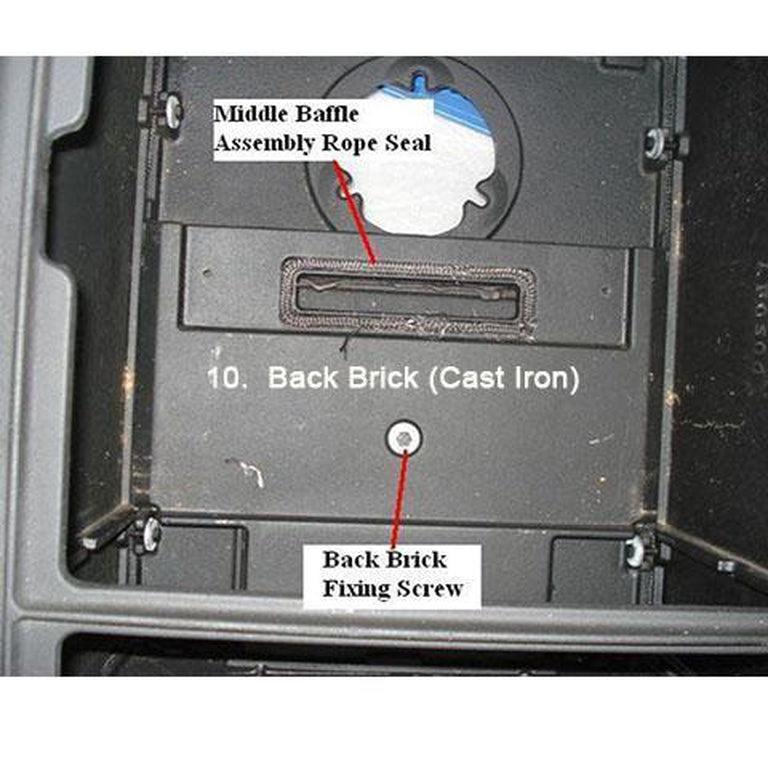

To remove the back brick, the grate frame (16) must be removed and the M6 x 30mm Hex Head bolt (with two 7mm ID x 22mm OD washers) fixing the back brick to the back casting (4) must also be removed. When refitting the back brick, remove all cement debris from the groove on the back casting and reseal with fire cement.
