Stanley Aoife DAMPER ROD BRACKET CA01103

Genuine Waterford Stanley Spare Part

Waterford Stanley Stove: Stanley Aoife

Part Number: CA01103

Description: DAMPER ROD BRACKET

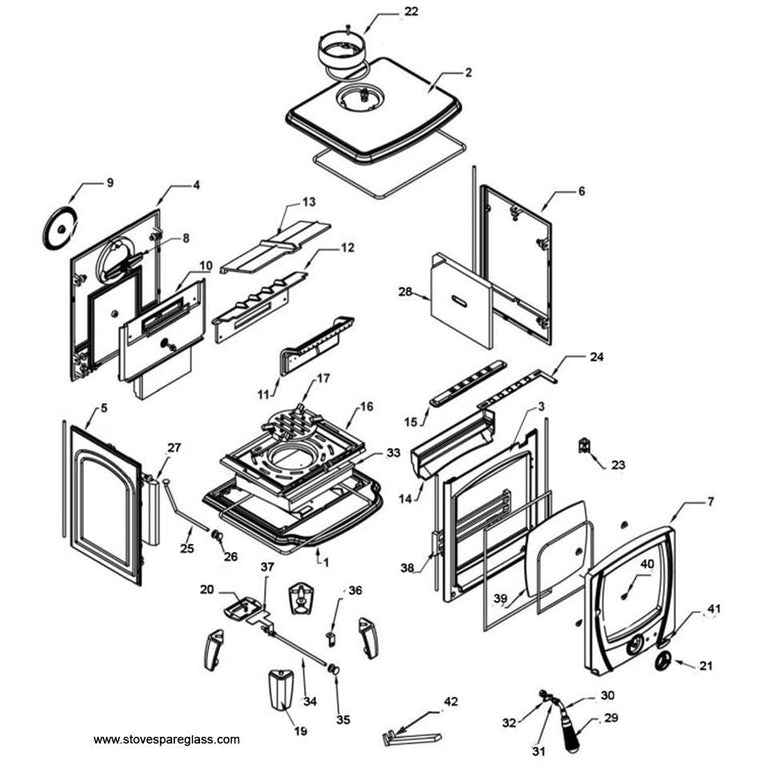

Number on Exploded Drawing: 36

Delivery to your door throughout all of UK and Ireland

Click here to view pop out drawing

Click here for pdf part numbers and drawing

Notes:

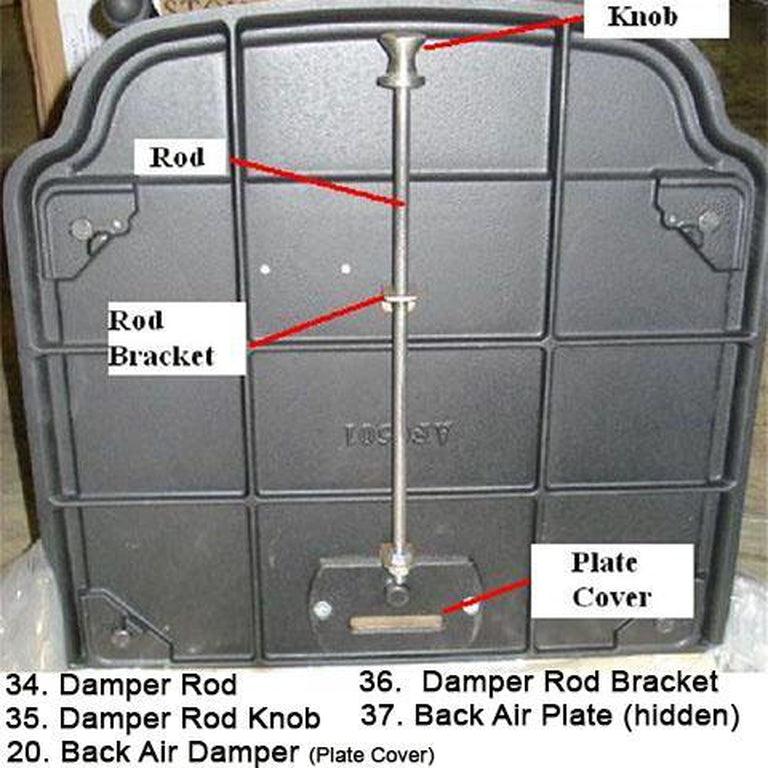

The secondary air control mechanism is located on the underside of the base with the secondary air control knob (35) threaded to a damper rod (34) which in turn is fixed to the back air plate (37) using two M8 nuts. The movement of the damper rod is guided by the back air plate cover (20) & the damper rod bracket (36). The plate cover is fixed with two M6 x 10mm screws and the bracket by a M6 x 100m Hex Head Bolt.
