Stanley Aoife DOOR CATCH CA1505

Genuine Waterford Stanley Spare Part

Waterford Stanley Stove: Stanley Aoife

Part Number: CA1505

Description: DOOR CATCH

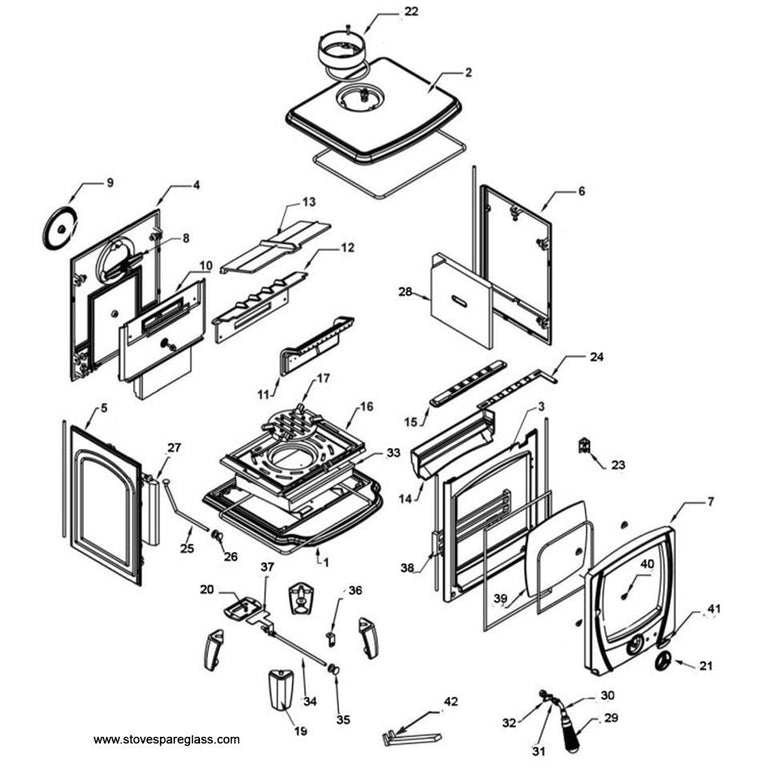

Number on Exploded Drawing: 32

Delivery to your door throughout all of UK and Ireland

Click here to view pop out drawing

Click here for pdf part numbers and drawing

Notes:

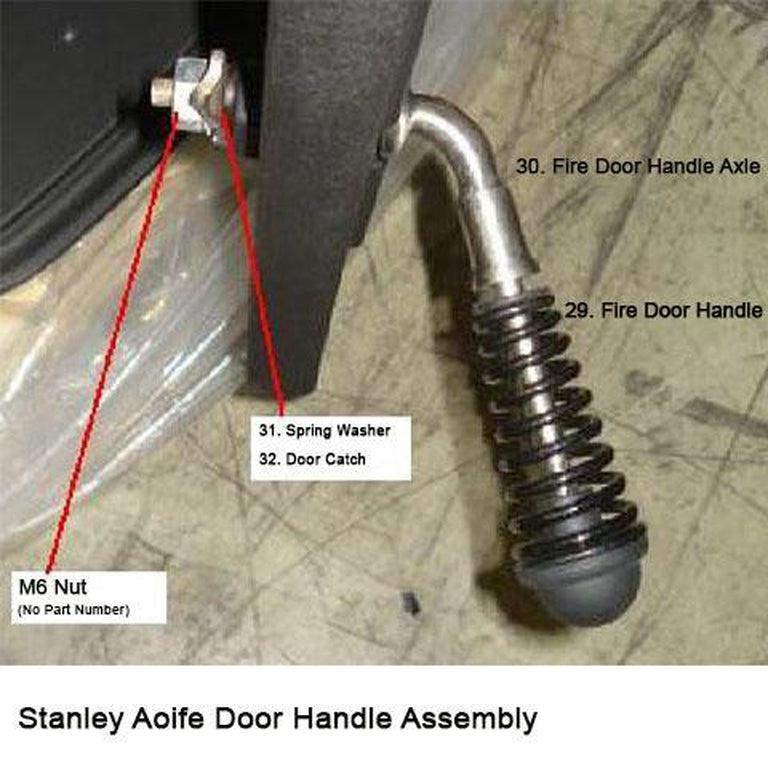

Door Catch Adjustment The door latch (32) is fitted with a spacer (31) between the latch & the back of the door casting (7). To adjust the door latch tightness, loosen the M6 Fixing Nut, remove the spacer & fit suitable sized washers in its place as required, checking the door seal on all sides with the paper seal test after each adjustment.
