Stanley Aoife DOOR GLASS CA1005B

Genuine Waterford Stanley Spare Part

Waterford Stanley Stove: Stanley Aoife

Part Number: CA1005B

Description: DOOR GLASS

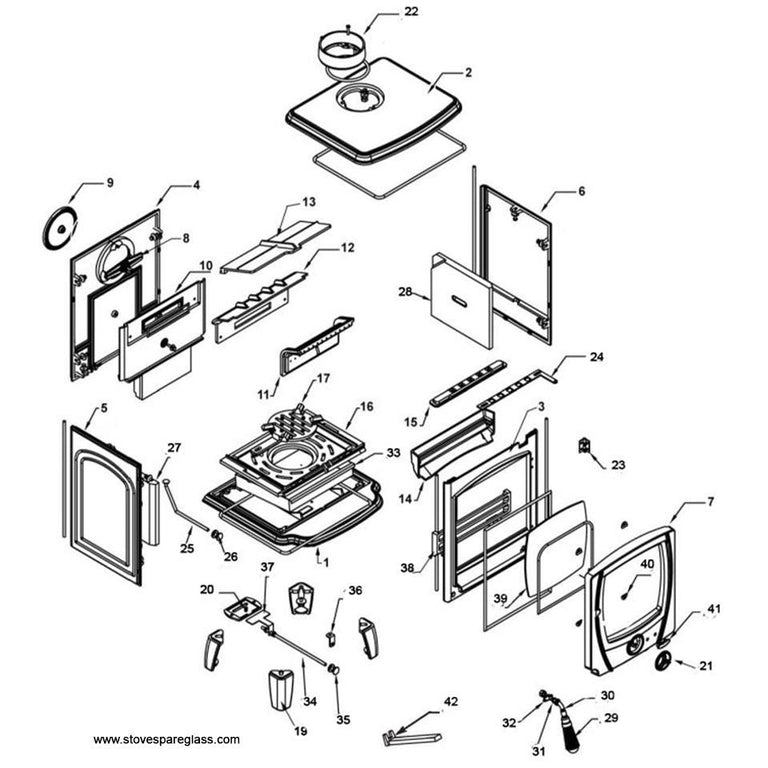

Number on Exploded Drawing: 39

Delivery to your door throughout all of UK and Ireland

Click here to view pop out drawing

Click here for pdf part numbers and drawing

Notes:

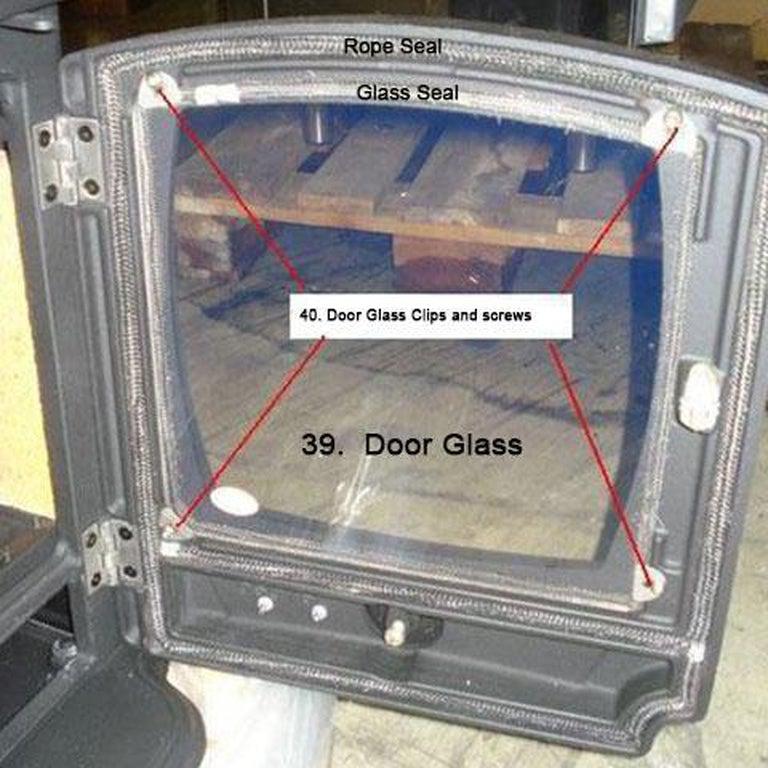

Remove the four fixing screws holding on the glass clips using the 5mm allen key provided with the stove and remove the glass panel (39) from the door. Fit the new glass (part 39) ensuring that the adhesive thermal tape (J00001AXX x 1.14 metres) is fitted to the perimeter of the glass. Refit the glass with the tape seal between the door & glass. Refit the door glass clips (40) using the M6 x 8mm Socket Head Screws.
