Stanley Aoife FRONT AF0503

Genuine Waterford Stanley Spare Part

Waterford Stanley Stove: Stanley Aoife

Part Number: AF0503

Description: FRONT

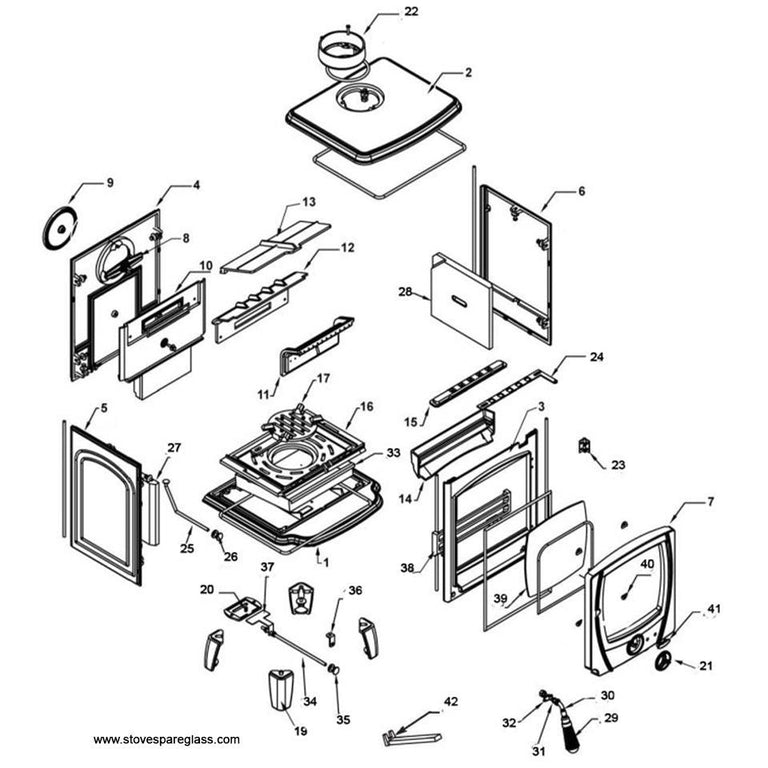

Number on Exploded Drawing: 3

Delivery to your door throughout all of UK and Ireland

Click here to view pop out drawing

Click here for pdf part numbers and drawing

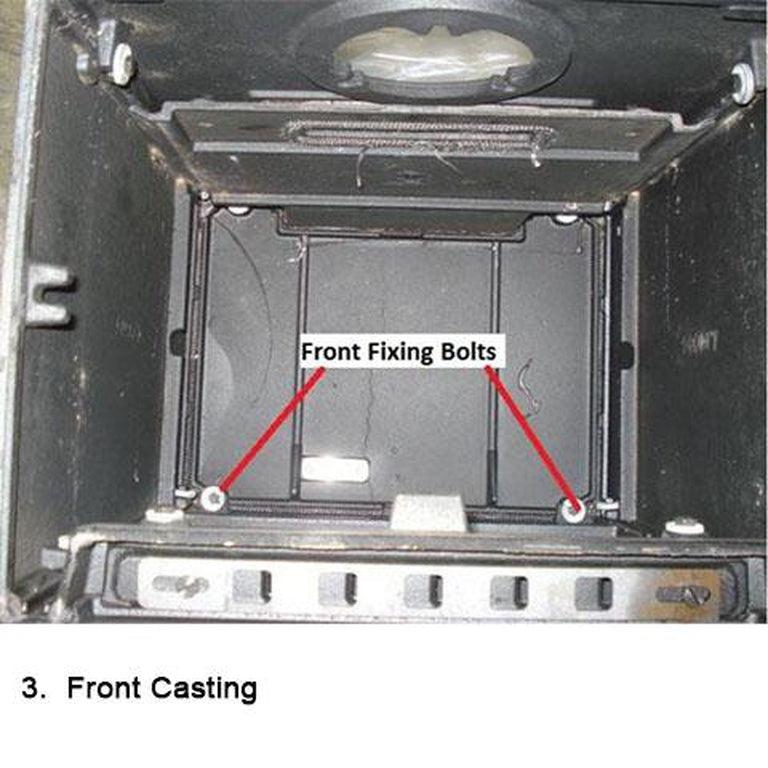

Remove both side panels (5 & 6) and remove the door assembly by removing the four M6 x 10mm Countersunk allen head screws fixing the door hinges to the front frame using the 5mm allen key supplied with the stove. Remove the front casting (3) from the base (1) by removing the two M6 x 30mm hex head bolts (with two 7mm ID x 22mm OD washers).  The air wash assembly (15 & 24) and the air wash base casting (14) can be removed from the front. When refitting all of the above, check all seals and replace with 12mm tape as required.
