Genuine Waterford Stanley Spare Part
Waterford Stanley Stove: Stanley Aoife
Part Number: AF0502

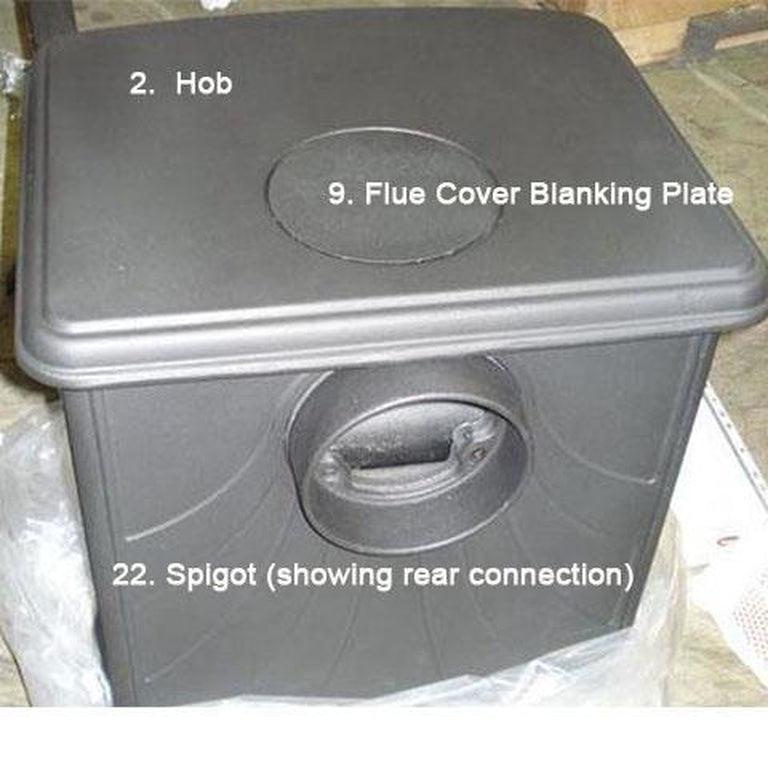

Description: HOB

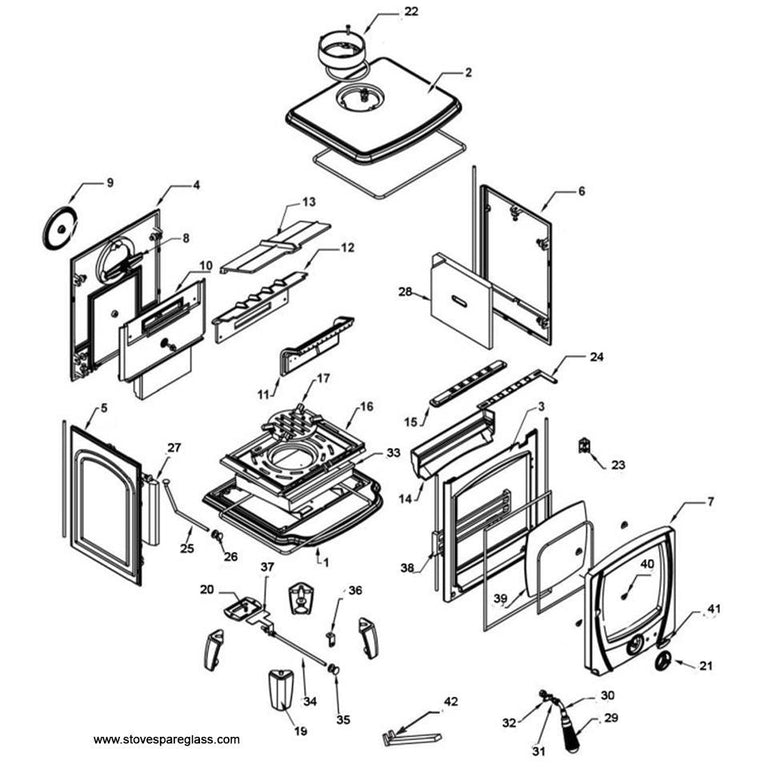

Number on Exploded Drawing: 2
Delivery to your door throughout all of UK and Ireland
Click here to view pop out drawing
Click here for pdf part numbers and drawing
Notes:

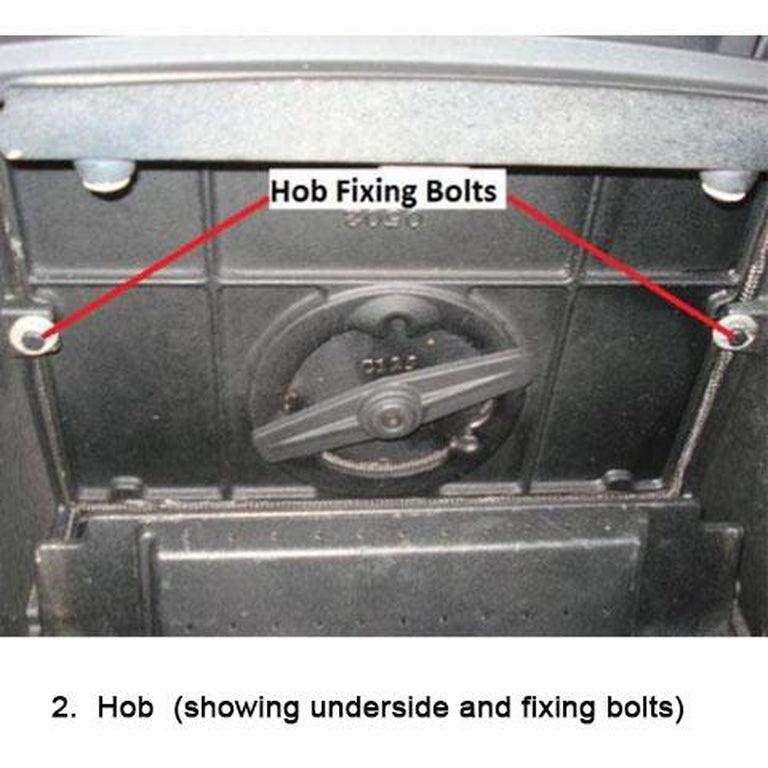

To access the hob fixing bolts, remove the Top Baffle (13) as described in section 3.5. Remove the two M6 x 30mm hex head bolts (with two 7mm ID x 22mm OD washers) as shown in Figure 4.8 which allows for the hob (2) to be removed. The hob (2) is sealed to the side panels (5&6), back casting (4) and front casting (3) using 12mm Tape (J00001AXX) and when fitting the replacement hob, the relevant length of 12mm tape should be fitted to the groove on the underside of the hob casting prior to refitting the ho
Collections: Stanley Aoife Spare Parts
