Stanley Aoife RH SIDE AF0506

Genuine Waterford Stanley Spare Part

Waterford Stanley Stove: Stanley Aoife

Part Number: AF0506

Description: RH SIDE

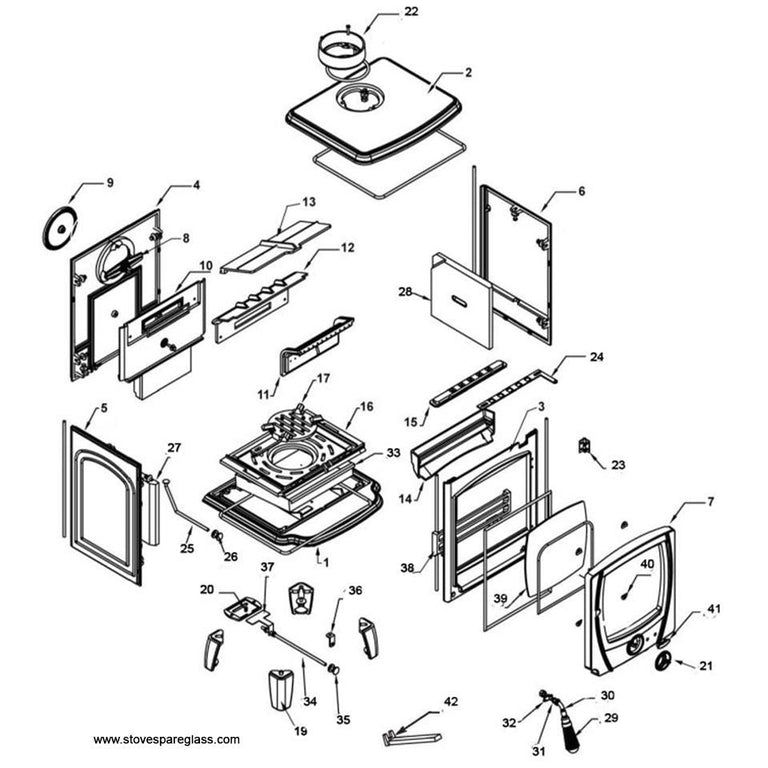

Number on Exploded Drawing: 6

Delivery to your door throughout all of UK and Ireland

Click here to view pop out drawing

Click here for pdf part numbers and drawing

Notes:

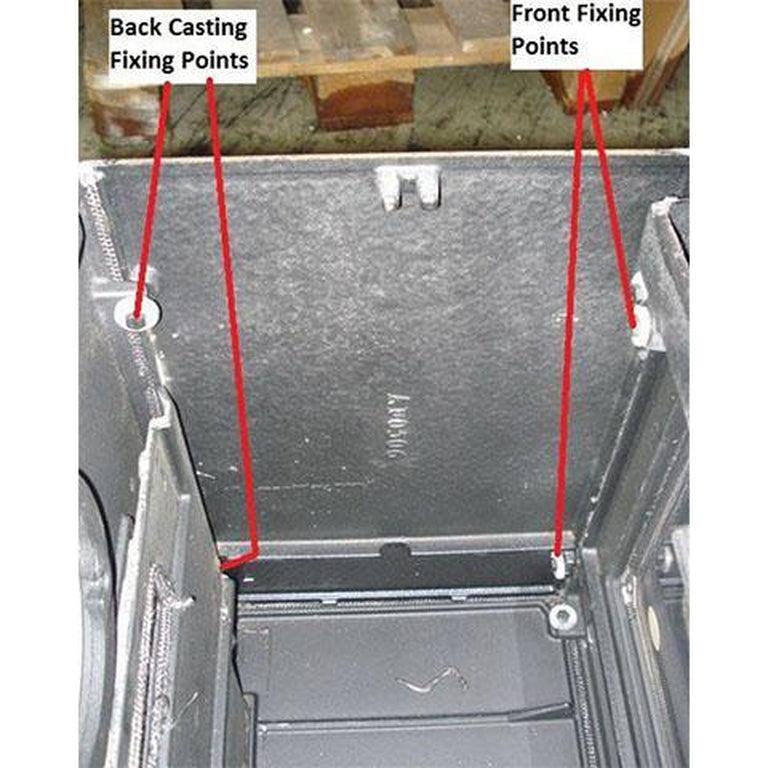

Remove hob casting (2), side bricks (27 & 28), fire fence (38) and grate assembly (17, 18 & 25). The side panel is fixed to the front casting (3) with two M6 x 30mm hex head bolts (with two 7mm ID x 22mm OD washers) and to the back casting (4) with two M6 x 30mm hex head bolts (with two 7mm ID x 22mm OD washers). Removal of these bolts allows for removal of the side panel and when refitting/replacing the side panel ensure that the tape seals between the back, front & base castings are not damaged & replace using 12mm tape if required.
