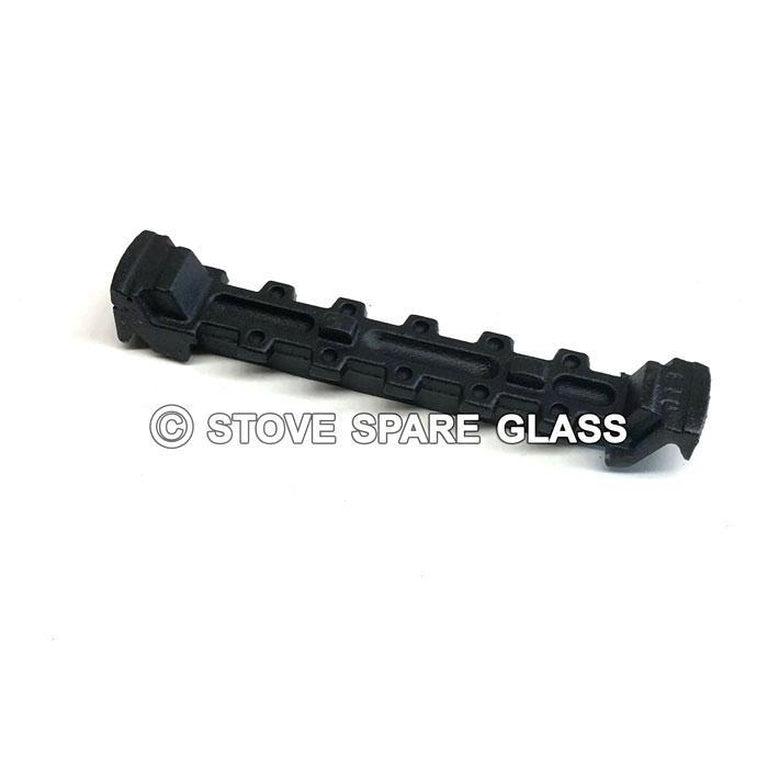

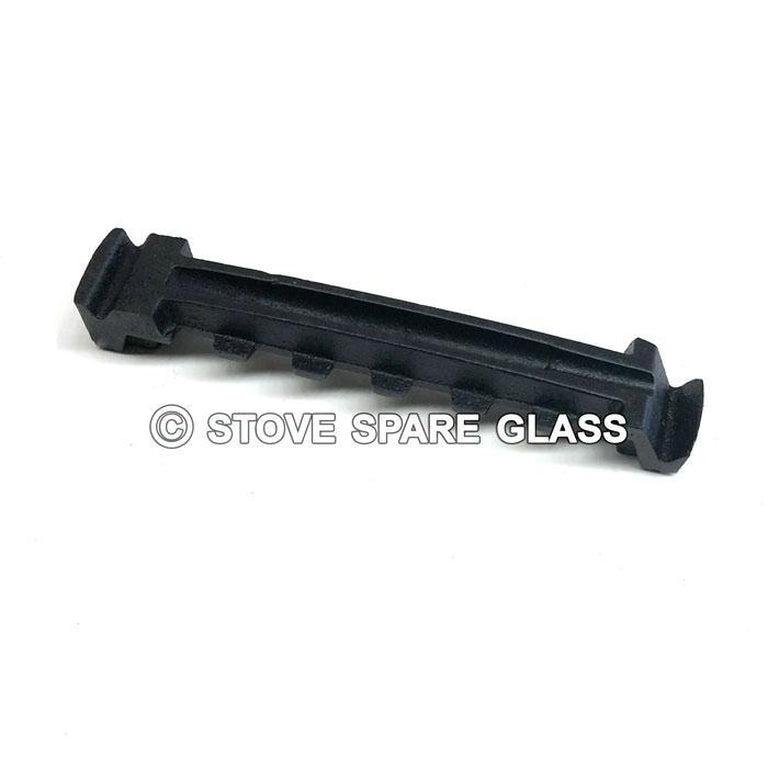

This individual AFS001 bar replaces the CST019 / NGB1B firebar pattern in the listed Arada, Aarrow, Hamlet, Stratford and Villager applications. It supports the fuel as part of the riddling grate and is supplied singly for repairs or model-specific set quantities.
| Supplied quantity | 1 grate bar |
| Material | Cast iron |
| Part number | AFS001 |
| Casting references | CST019 / NGB1B |
| Approximate length | 222 mm |
| Approximate weight | 0.65 kg |
| Supply | Non-original compatible replacement |
| Listed full-set quantity: 5 bars | Acorn 4; Acorn 5; Arley 5; Becton 5; Becton 7; Camborne Deluxe Compact; Duo 5; Ecoborn 5; Heron 5; Nouveau 7; Puffin 4; Sherborne Compact; Solution 4; T30B |
| Listed full-set quantity: 7 bars | Arley 7; Becton 11; Camborne Deluxe Small; Villager Duo 5; Ecoboiler 7HE; Ecoboiler 9HE; Ecoburn 7; Ecoburn 7 Inset; Sherborne Small; Solution 5 Compact; Solution 5 Inset; Solution 7; Stratford TF50B |
| Listed full-set quantity: 9 bars | Arley 11; Villager Boiler 12 Duo; Ecoboiler 12HE; Ecoburn 9; Stratford SF50; Sherborne Medium; Solution 9 |
| Listed full-set quantity: 10 bars | Solution 5 Widescreen |
| Listed full-set quantity: 11 bars | Camborne Deluxe Medium; Ecoboiler 16HE; Ecoboiler 18HE; SEB 20 |
| Listed full-set quantity: 12 bars | Ecoboiler 12 Inset |
| Additional model codes; quantities vary | ACORN4, ACORN5, APEX, ARL5M, ARL7M, ARL11M, AX1M-S2, AX2M-S2, AX1M-S3, AX2M-S3, AX3M, AX4M, AX5M-INSET, ATH1M, ATH2M, ATH3M, ATH5M-INSET, B5MU, B7MU, B11MU, B11W, BEC-5X, BEC-7X, CAMDLC, CAMDLS, CAMDLMM, CAMDLCM-G2, CAMDLSM-G2, CAMDLMM-G2, CARCM, CARSM, CARMM, EB7HE, EB7HE-G2, EB9HE, EB9HE-G2/G3/G4/G5, EB12HE, EB12HE-G2/G3/G4, EB12-CASSETTE, EB16HE, EB16HE-G2/G4/G5, EB18HE, ECB5WCE, ECB5MCE, ECB7WCE, ECB7MCE, ECB9WCE, ECB9MCE, ECB5MCE-S2, ECB5M-INSET-S2, ECB7MCE-S2, ECB9MCE-S2, ECO5, ECO7, ECO9, EV7, EV11, HARDY4M-S3, HARDY5M-S3, HSB9, HSB12, HSB16, HERON5M-S2, HERON5M-S3, N7MF, PUFFIN4M-S2, PUFFIN4M-S3, SEB20, SHBCM, SHBSM, SHBMM, SHBCM-G2, SHBSM-G2, SHBMM-G2, SIGN5W, SIGN5M, SIGN5M-S2, SIGNI5W, SIGNI5M, SF30, SF50, SM30, SM40, SM50, SOL5M, SOL5MCE, SOLI5M, SOL7M, SOL7MCE, SOL9M, SOL9MCE, SOL5SC-S2 (after serial E04), SOL5MCE-S2, SOL5MCE-WS, SOL5M-INSET-S2, SOL5W-INSET-S2, SOL7MCE-S2, SOL9MCE-S2, TF30B, TF50B, V5-DUO, VB12-DUO, VHAM and VALOR HAMLET |
A single damaged firebar can affect the movement of the whole grate. Compare the original casting and length with AFS001 before ordering, and confirm the exact model, version and serial number where relevant. Check the precise Duo 5 version against the manufacturer's parts list, as full-set quantities differ. This product supplies one bar.
