Stove glass fitting can be arranged in store - drop off & collection service for stove doors.

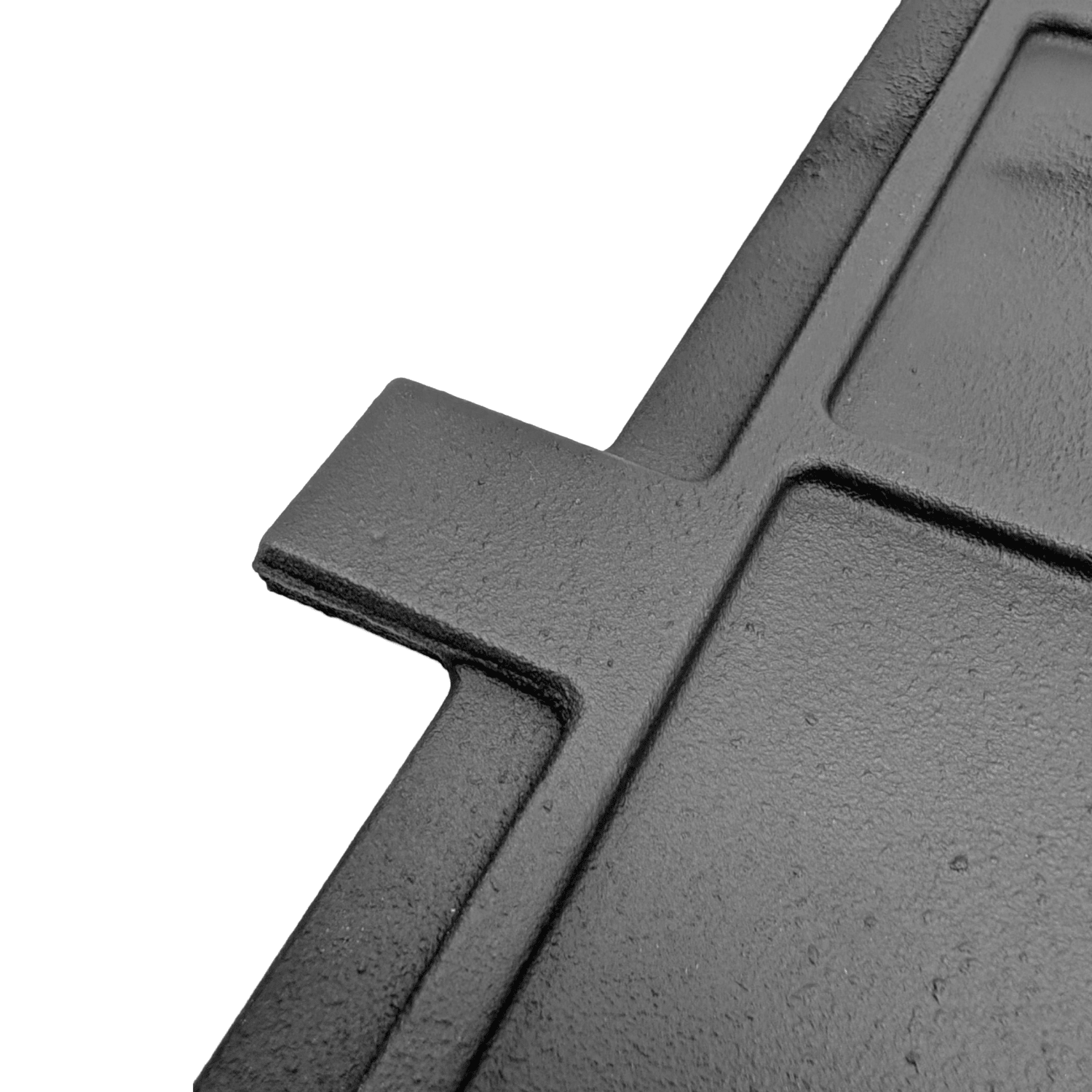

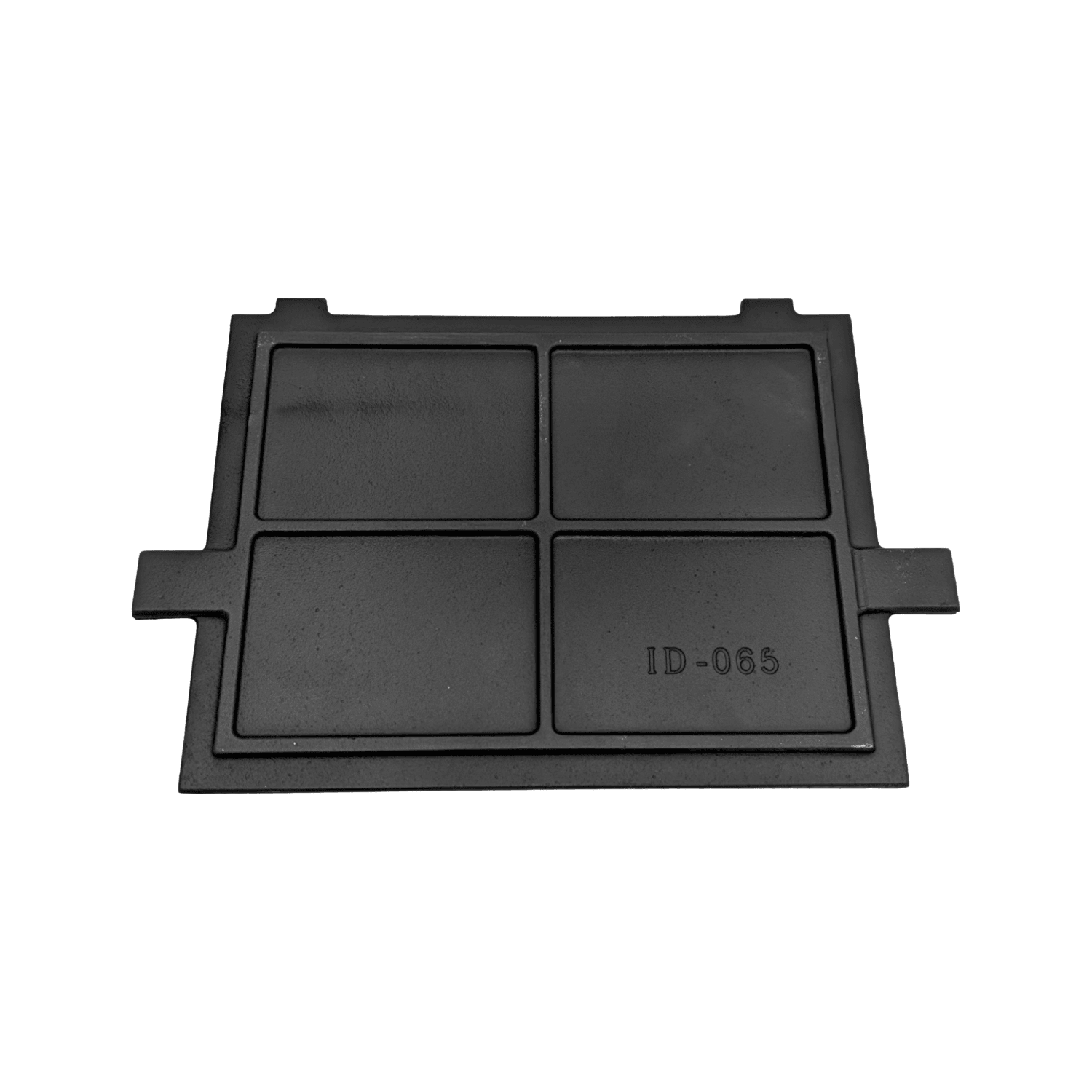

Replace the plate above the fire in a compatible JA010-pattern stove with this cast iron baffle. Also known as a throat plate, it directs the passage of flue gases through the upper firebox and is supplied as a non-original replacement.
| Listed compatibility | Sunrain JA010 / JA010, VO010, Woodsman and Mazona Olympus |
| Material | Cast iron |

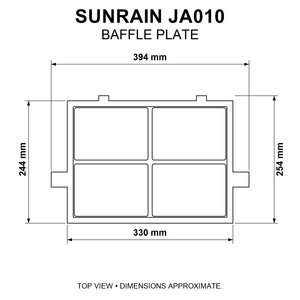

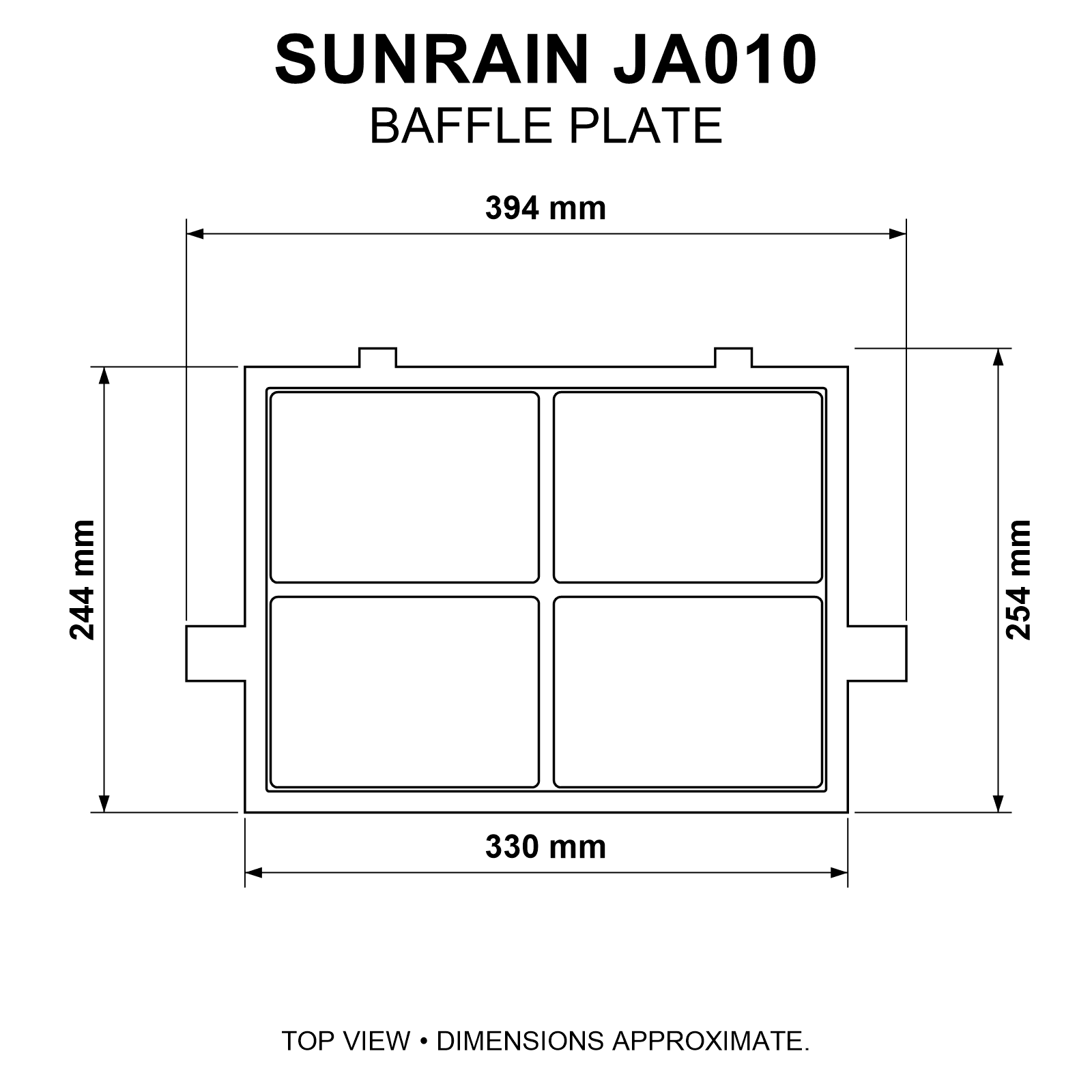

| Approximate width including mounting ears | 394 mm |
| Approximate width excluding mounting ears | 330 mm |
| Approximate depth including tab | 254 mm |
| Approximate depth excluding tab | 244 mm |
| Weight | 3.5 kg |
| Supply | Non-original compatible replacement |
| Measurement note | Allow for small casting variations |
Match the mounting ears, tab and plate outline as well as the stove model before ordering. Heat exposure can leave a baffle cracked or corroded, affecting how it sits above the fire. Use this baffle's compatibility list specifically: the JA010 grate has a different list, so suitability of one part does not confirm the other.
