Aarrow/Arada Glass Clips and Screws

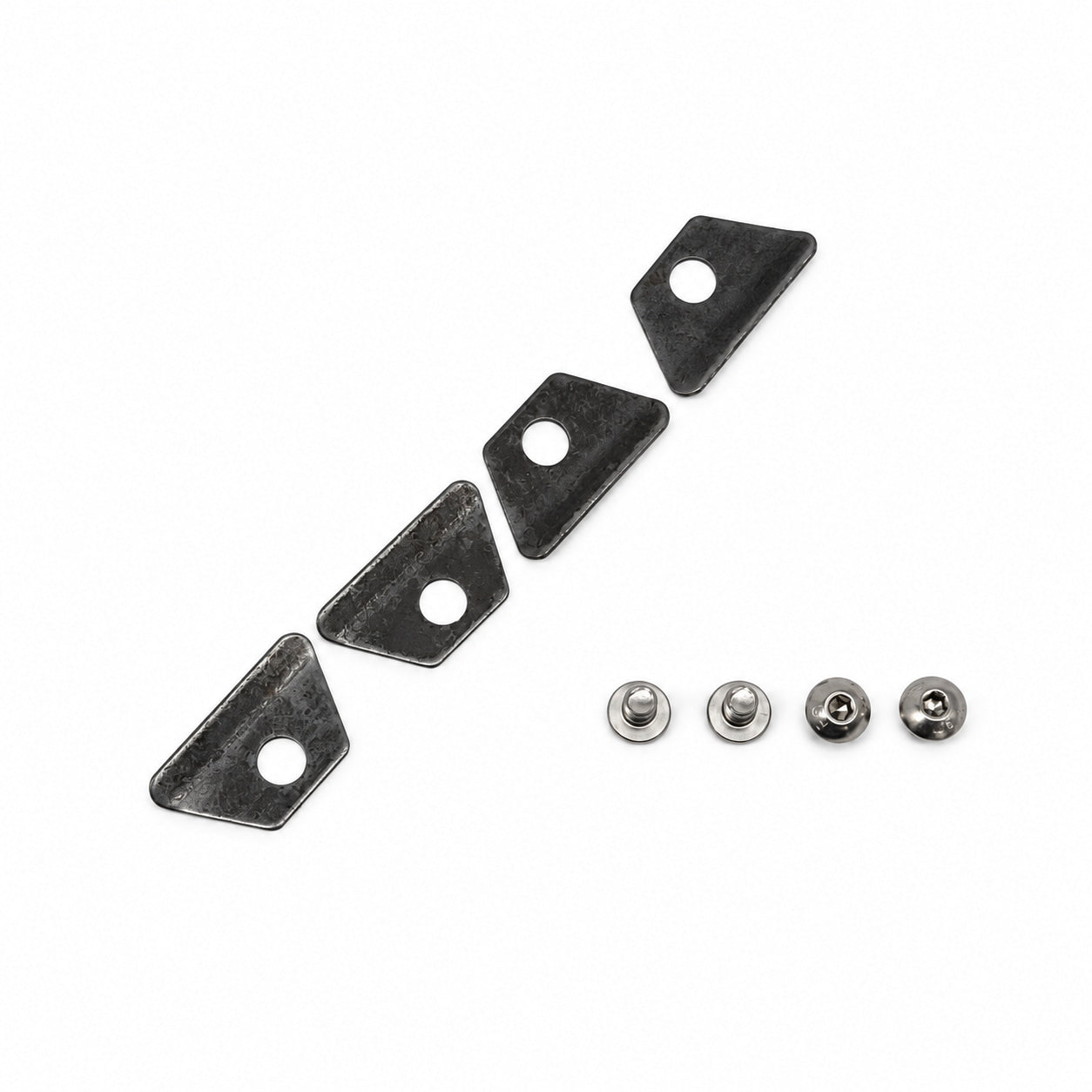

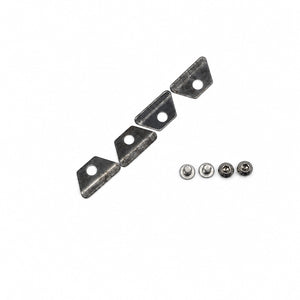

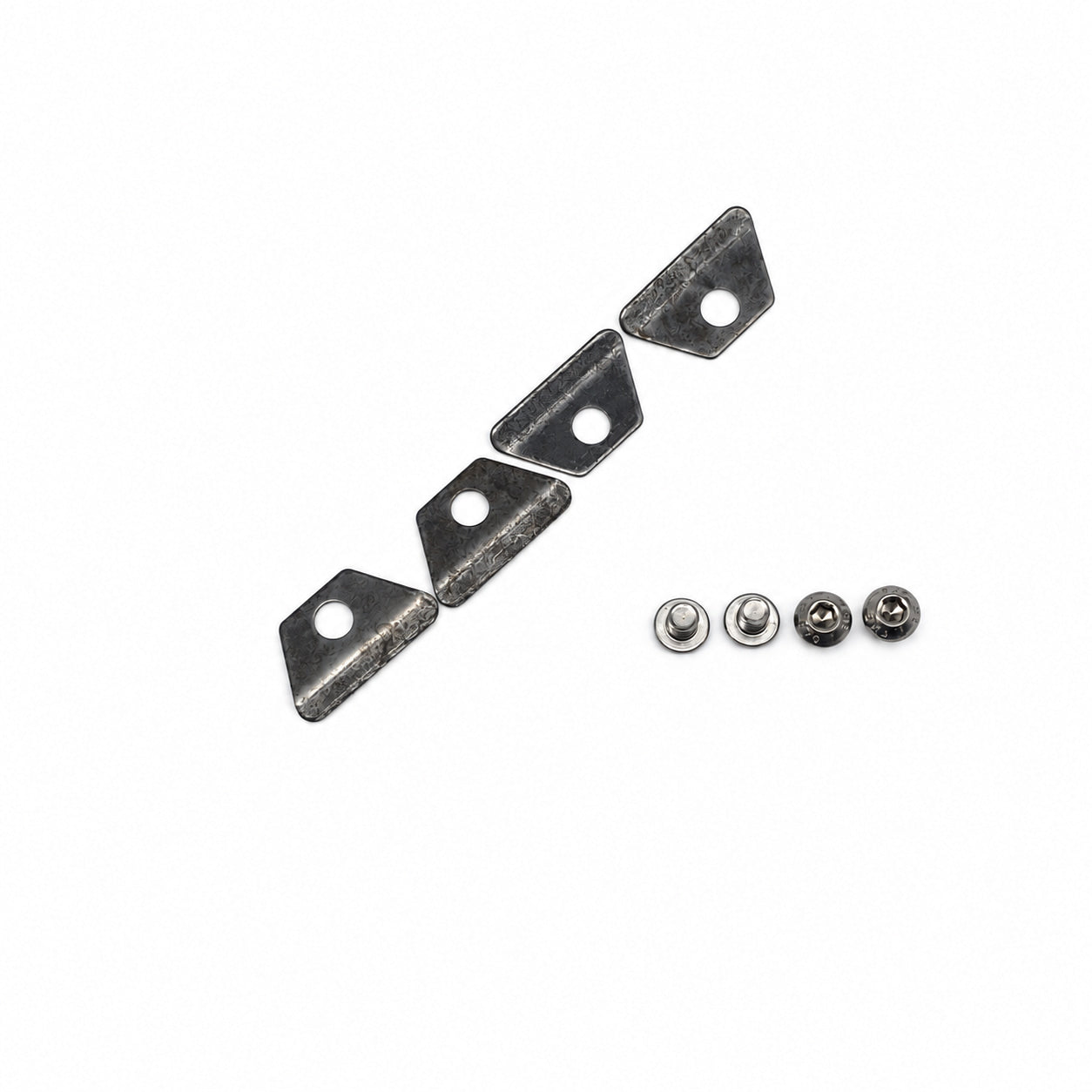

Replacement glass retaining clips for Aarrow and Arada stoves using the AFS1010 clip pattern. Each pack contains four clips and four stainless steel screws in your choice of M5 or M6 to secure the glass in the stove door.

Technical Details

• Common suitability: Aarrow and Arada stoves using the AFS1010 clip pattern
• Replacement clip reference: AFS1010
• Screw size: M5 or M6 — select from the dropdown
• Screw material and head type: Hex head stainless steel
• Clip width at glass edge: 32mm
• Hole centre to glass-contact edge: 12mm

Compare the shape, dimensions and fixing size with your existing clips before ordering. Choose the screw size that matches the threads in your stove door. Stove models can use different fittings, so check the original clips as well as the stove name.

Check the glass seal when replacing the clips. Tighten the fixings gently and evenly so the glass is held securely without excessive pressure.
