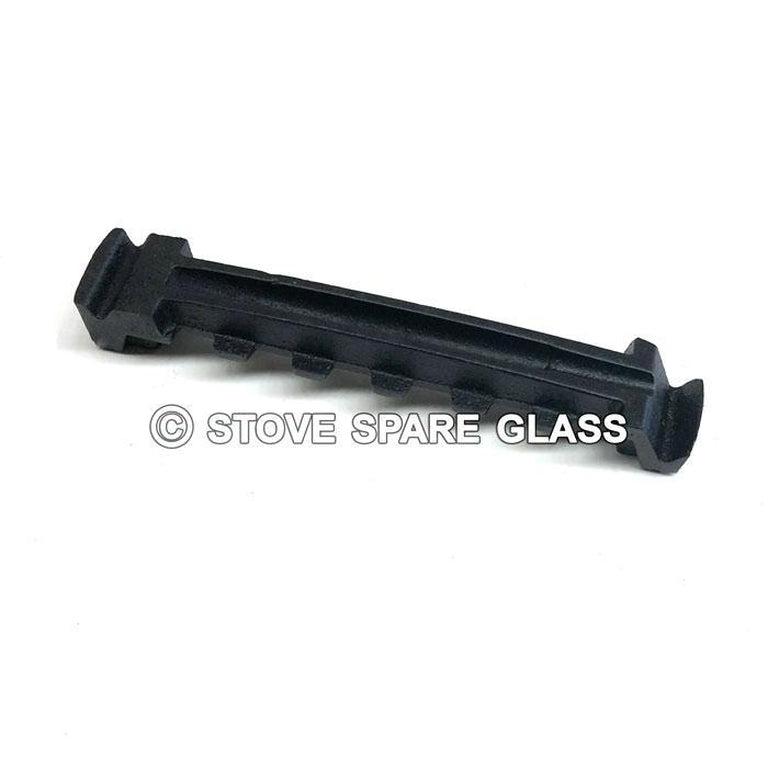

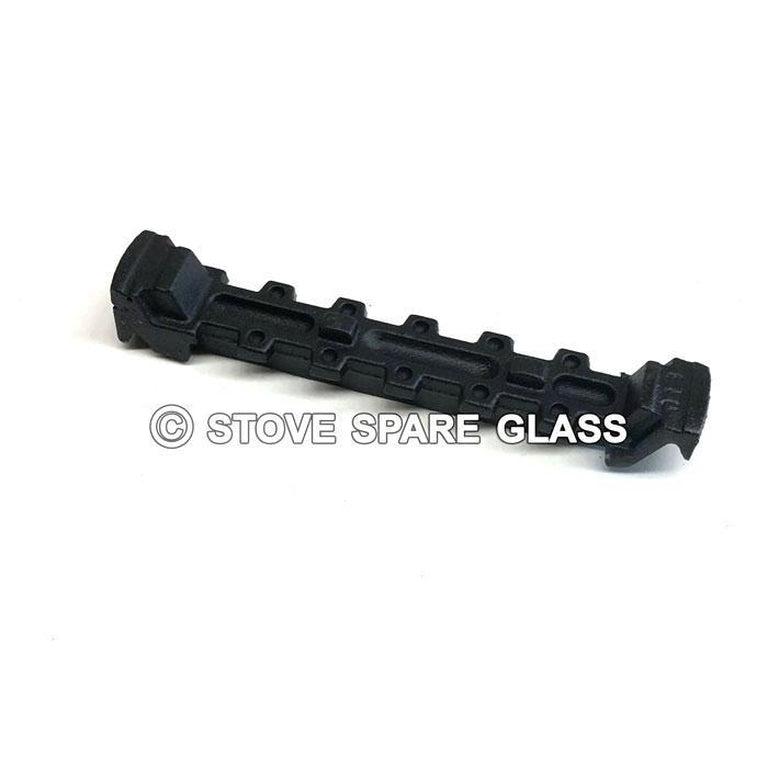

Five cast iron AFS001 bars supplied for the Aarrow Ecoburn 5 grate. Made to the CST019-style profile associated with NGB1B castings, the bars carry the fuel bed and let ash pass down into the ashpan during riddling.
| Compatible model | Aarrow Ecoburn 5 |
| Quantity | 5 grate bars |
| Material | Cast iron |
| Part number | AFS001 |
| Casting codes | CST019 / NGB1B |
| Approximate length | 222 mm per bar |
| Approximate weight per bar | 0.65 kg |
| Supply | Non-original compatible replacement set |
Inspect the bar edges and ends when the grate becomes difficult to riddle. Cracking or warping can obstruct movement and close off air passages below the fire. Confirm the Ecoburn 5 model and compare the original bar code and dimensions before ordering the five-bar pack.
