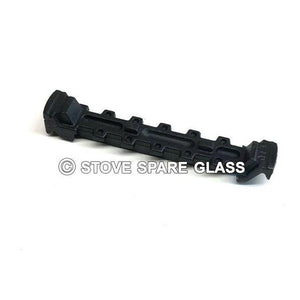

Aarrow Replacement Grate Bar (Set of 7) for Casting AFS001

This is a Set of 7 cast iron firebar to fit the following Arada/Aarow stoves

Set of 7 bars fits the following stoves:

Arada Ecoboiler 9 HE - 7 bars in full set

Hamlet Solution 7 - 7 bars in full set

Camborne Deluxe Small - 7 bars in full set

Ecoburn 7 - 7 bars in full set

Sherborne Small - 7 bars in full set

Solution 7 - 7 bars in full set

Stratford SF 30 - 7 bars in full set

List of Older stoves also fits (may be different qty in set):

Fits Stoves: ACORN4, ACORN5, APEX, ARL5M, ARL7M, ARL11M, AX1M-S2, AX2M-S2, AX1M-S3, AX2M-S3, AX3M, AX4M, AX5M-INSET, ATH1M, ATH2M, ATH3M, ATH5M-INSET, B5MU, B7MU, B11MU, B11W, BEC-5X, BEC-7X, CAMDLC, CAMDLS, CAMDLMM, CAMDLCM-G2, CAMDLSM-G2, CAMDLMM-G2, CARCM, CARSM, CARMM, EB7HE, EB7HE-G2, EB9HE, EB9HE-G2, EB9HE-G3, EB9HE-G4, EB9HE-G5, EB12HE, EB12HE-G2, EB12HE-G3, EB12HE-G4, EB12-CASSETTE, EB16HE, EB16HE-G2, EB16HE-G4, EB16HE-G5, EB18HE, ECB5WCE, ECB5MCE, ECB7WCE, ECB7MCE, ECB9WCE, ECB9MCE, ECB5MCE-S2, ECB5M-INSET-S2, ECB7MCE-S2, ECB9MCE-S2, ECO5, ECO7, ECO9, EV7, EV11, HARDY4M-S3,HARDY5M-S3, HSB9, HSB12, HSB16, HERON5M-S2, HERON5M-S3, HSB9, HSB12, HSB16, N7MF, PUFFIN4M-S2, PUFFIN4M-S3, SEB20, SHBCM, SHBSM, SHBMM, SHBCM-G2, SHBSM-G2, SHBMM-G2, SIGN5W, SIGN5M, SIGN5M-S2, SIGNI5W, SIGNI5M, SF30, SF50, SM30, SM40, SM50, SOL5M, SOL5MCE, SOLI5M, SOL7M, SOL7MCE, SOL9M, SOL9MCE, SOL5SC-S2 (models after serial no. E04), SOL5MCE-S2, SOL5MCE-WS, SOL5M-INSET-S2, SOL5W-INSET-S2, SOL7MCE-S2, SOL9MCE-S2, TF30B, TF50B, V5-DUO, VB12-DUO, VHAM, VALOR HAMLET

Cast Iron Grate Bar

BARS WITH “NGB1B” CAST ON BASE ARE THE OLD BARS

These are the new bar similar size to “CST019″

Weight

0.65kg x 7

Product Information

Grate Bar Length: approx 220mm

If your stove currently has a set of older style grate bars we recommend you replace the whole set in one go, if the older and new style grate bars are mixed they may not riddle very smoothly.
