Stove glass fitting can be arranged in store - drop off & collection service for stove doors.

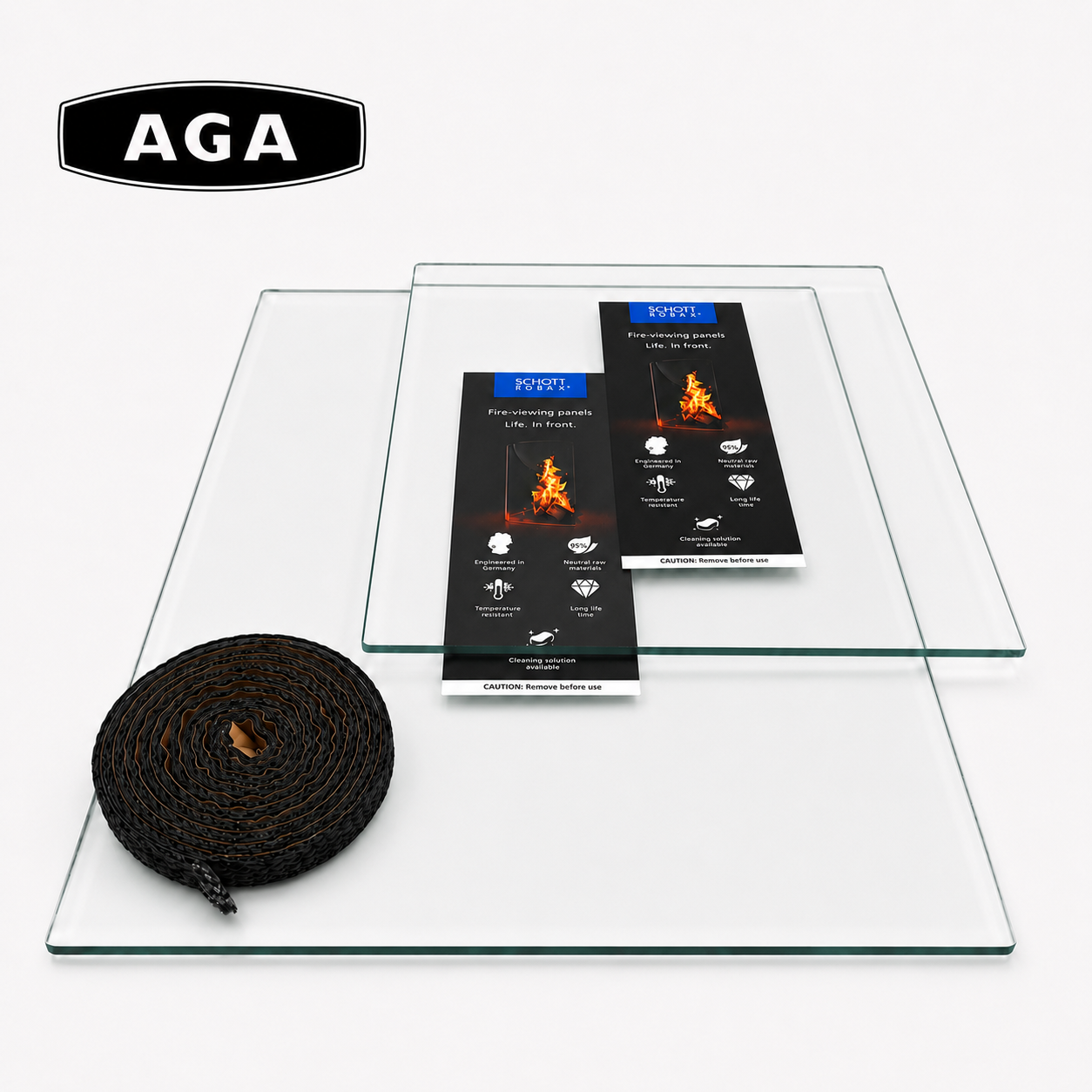

Premium 4mm genuine SCHOTT ROBAX® heat-resistant glass-ceramic, precision cut for the listed AGA and Coalbrookdale stove models.
Select your exact stove model from the dropdown menu to receive the correct glass size, shape, quantity and seal length.
Stove Spare Glass Ltd is an official stockist of genuine SCHOTT ROBAX® fire-viewing glass-ceramic. Every panel is cut from original German-engineered material designed for high-temperature stove and fireplace applications.
Every selected panel or strip set is supplied with an 8mm × 3mm self-adhesive high-temperature glass seal. The supplied seal length is calculated from the complete perimeter of the selected glass, or from the combined perimeter where a full strip set is supplied.
| AGA / Coalbrookdale Model | Glass Size | Shape |
|---|---|---|
| Stretton | 300 × 286 × 4mm | Rectangle |
| Stretton Inset | 300 × 290 × 4mm | Rectangle |
| Severn | 233 × 147 × 4mm | Rectangle |
| Minsterley | 372 × 244 × 4mm | Rectangle |
| Ludlow | 268 × 240 × 4mm | Rectangle |
| Ludlow EC5W | 450 × 345 × 4mm | Rectangle |
| Nyne | 236 × 236 × 4mm | Rectangle |
| Osi | 188 × 156 × 4mm | Rectangle |
| Darby A | 228 × 190 × 4mm | Rectangle |
| Darby B | 190 × 76 × 4mm | Rectangle |
| Berrington | 428 × 267 × 4mm | Straight arch |
| Wren | 285 × 284 × 4mm | Arched |
| Ellesmere 4kW | 285 × 260 × 4mm | Four 22mm-radius rounded corners |
| Ellesmere 5kW | 360 × 345 × 4mm | Four 22mm-radius rounded corners |
| New Little Wenlock | 260 × 200 × 4mm | Rectangle |
| Little Wenlock Mk 1 | 156 × 156 × 4mm | Rectangle |
| Little Wenlock Mk 1 – Full Set of 3 Strips | 3 × 156 × 52 × 4mm | Strip set |
| Little Wenlock Mk 2 | 188 × 156 × 4mm | Rectangle |
| Little Wenlock Mk 2 – Full Set of 3 Strips | 3 × 188 × 52 × 4mm | Strip set |
| Little Wenlock Mk 3 | 238 × 188 × 4mm | Rectangle |
| Little Wenlock Classic | 230 × 210 × 4mm | Rectangle |
| New Much Wenlock | 340 × 250 × 4mm | Rectangle |
| Much Wenlock Mk 1 | 260 × 162 × 4mm | Rectangle |
| Much Wenlock Mk 1 – Full Set of 2 Strips | 2 × 162 × 46 × 4mm | Strip set |
| Much Wenlock Mk 1 – Full Set of 4 Strips | 4 × 162 × 40 × 4mm | Strip set |
| Much Wenlock Mk 2 | 291 × 223 × 4mm | Rectangle |
| Much Wenlock Mk 2 – One Strip | 291 × 37 × 4mm | Strip |
| Much Wenlock Classic | 323 × 266 × 4mm | Rectangle |
The glass seal cushions the glass-ceramic against the metal stove door, prevents direct metal-to-glass contact, distributes pressure from the retainers and helps avoid concentrated stress points as the stove heats and cools.
The existing seal is often compressed, hardened or damaged when the old glass is removed. A fresh seal helps the replacement glass sit evenly and securely.
Remove the old glass and seal carefully, then clean the glass recess thoroughly. Apply the supplied seal evenly around each glass panel so it is continuously cushioned. Refit the retainers gradually and evenly. Do not overtighten the clips or screws.
This product is a compatible replacement, not an original manufacturer-branded spare part.
