Stove glass fitting can be arranged in store - drop off & collection service for stove doors.
A circular replacement centre grate for the AGA Ludlow. It sits inside the carrier frame, with a small hole in its handle for the riddling bar to engage and rotate the grate, shaking ash down into the ashpan.
| Compatible model | AGA Ludlow |
| Part type | Centre riddling grate |
| Material | Cast iron |
| Part references | C2122 / SM08115CR / FS4M996139 |
| Listed heat resistance | Up to 650°C |

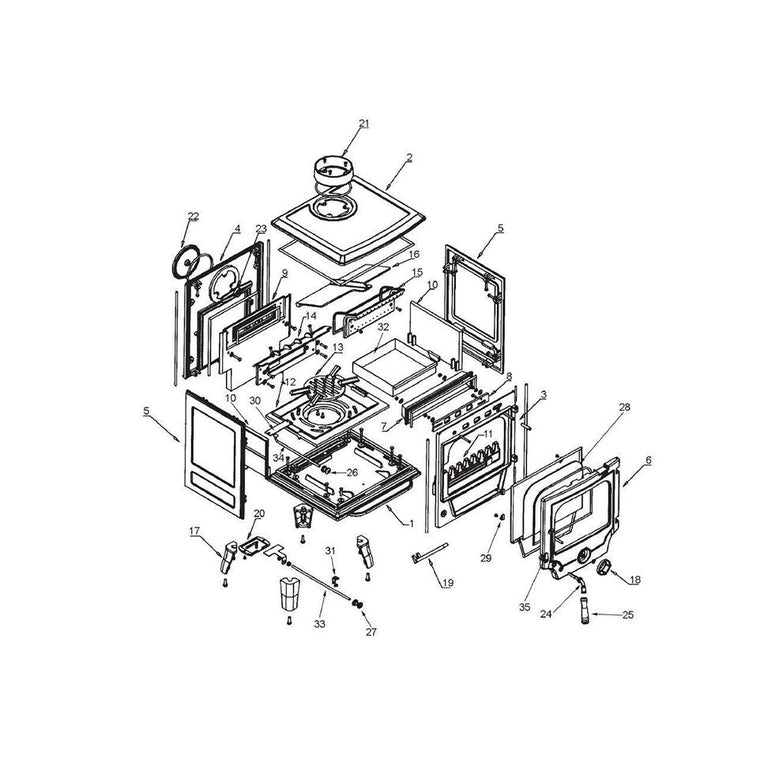

| Position | Inside the carrier frame; identified as item 13 on the referenced exploded drawing |
| Contents | 1 centre grate; carrier frame is separate |
| Supply | Compatible replacement made to the C2122 dimensions |
Check the riddling hole as well as the grate surface when ash clearance becomes difficult. Corrosion, distortion or wear at the connection can interfere with rotation. Confirm the Ludlow model and part reference before ordering, and inspect the carrier frame separately because it is not included with the centre grate.
