Stove glass fitting can be arranged in store - drop off & collection service for stove doors.

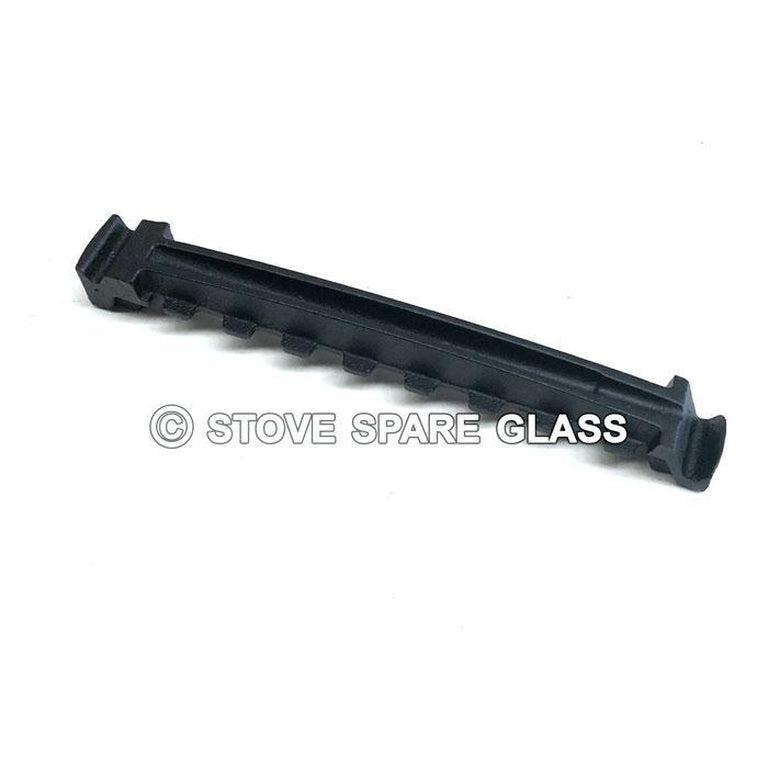

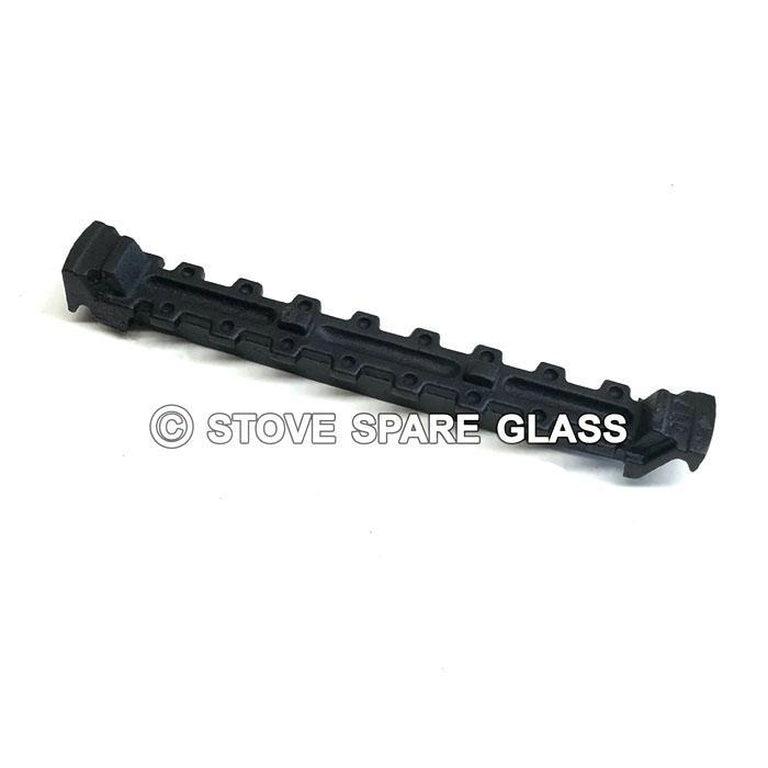

An individual cast iron AFS002 firebar for the listed Arada, Aarrow, Hamlet, Stratford and Villager applications. The bar replaces the CST020 / NGB2B pattern within the riddling grate and can be ordered singly or in the quantity required for the stove.
| Supplied quantity | 1 grate bar |
| Material | Cast iron |
| Part number | AFS002 |
| Casting references | CST020 / NGB2B |
| Approximate length | 292 mm |
| Approximate weight | 0.89 kg |
| Supply | Non-original compatible replacement |
| Listed full-set quantity: 7 bars | Villager Duo 8 |
| Listed full-set quantity: 9 bars | Stratford TF70B |
| Listed full-set quantity: 10 bars | Stratford 20 Boiler; Stratford 25 Boiler |
| Listed full-set quantity: 11 bars | Villager Boiler 20 Duo; Villager Duo 12; Ecoboiler 20HE; Ecoburn 11; Sherborne Large; Solution 11 |
| Listed full-set quantity: 13 bars | Ecoboiler 25HE |
| Additional model codes; quantities vary | B18MU, B18W, CAMDLLM, CAMDLLM-G2, ECO11, EV18, ECB11WCE, ECB11MCE, ECB11MCE-S2, EB20HE, EB20HE-G2, EB20HE-G4, EB20HE-G5, EB25HE, EB25HE-G2, EB25HE-G3, EB25HE-G4, EB25HE-G5, SF70, SHBLM, SHBLM-G2, SM70, SOL11MCE, SOL11MCE-S2, TF70B, VB20-DUO, V8-DUO and V12-DUO |
Match the casting profile and approximate length before replacing an individual bar; different bar patterns should not be mixed. Cracked or warped bars can jam the riddling arrangement and affect airflow. Confirm the precise model code and required quantity against your stove's parts list before ordering, especially for older versions where the bar count varies.
