Stove glass fitting can be arranged in store - drop off & collection service for stove doors.

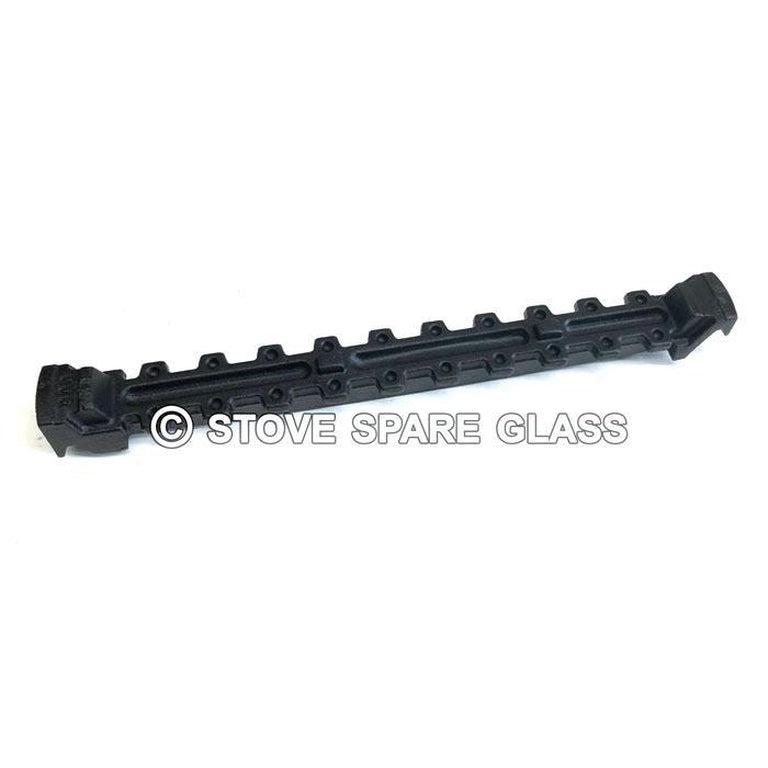

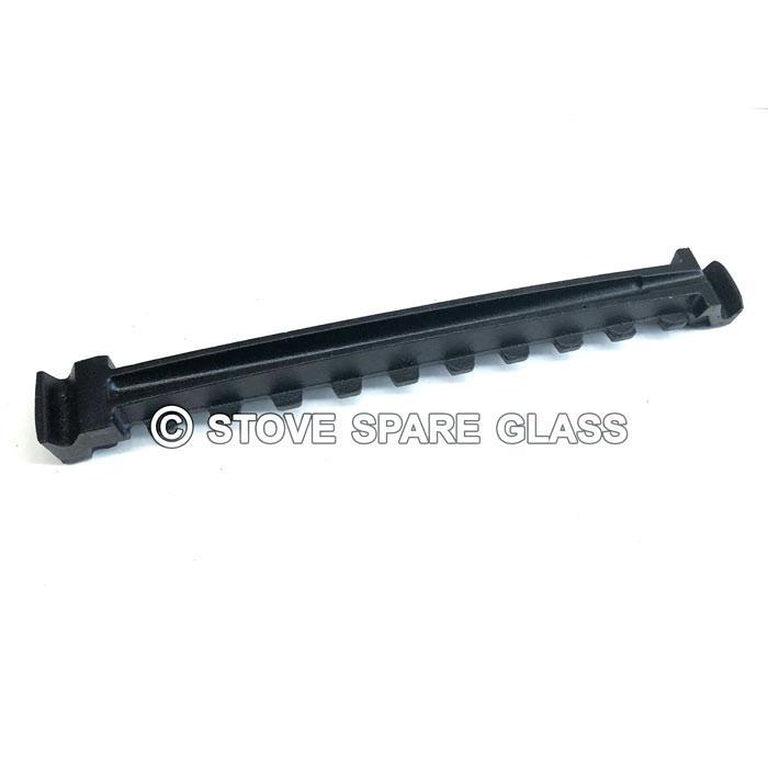

An individual cast iron AFS003 firebar for the listed inset and other compatible stove models. The bar replaces the CST021 / NGB3B pattern within the riddling grate, supporting fuel and allowing ash to pass into the pan below.
| Quantity supplied | 1 grate bar |
| Material | Cast iron |
| Part number | AFS003 |
| Casting references | CST021 / NGB3B |
| Approximate length | 355 mm |
| Approximate weight | 1.12 kg |
| Supply | Non-original compatible replacement |
| Listed full-set quantity: 7 bars | Ecoboiler 12HE Inset; Ecoboiler 9HE Inset; Ecoburn 7 Inset; Stratford TI40B |
| Listed full-set quantity: 9 bars | Ecoboiler 16HE Inset; Stratford TF90B |
| Listed full-set quantity: 13 bars | Villager Duo 14 |
| Additional compatible codes; quantities vary | ATH6M-INSET, AX6M-INSET, EB9HE-INSET (G2–G4), EB12HE-INSET (G2–G5), EB16HE-INSET (G4–G5), ECB7M-INSET-S2, HSB9-INSET (G2), HSB12-INSET (G2, S), SF90, SI40, SI60, SIGNI7W, SIGNI7M, SM90, SOL7M-INSET-S2, TF90B, TI40B and V14-DUO |
Match the 355 mm AFS003 profile to your original bar before ordering, especially where a model name appears across several generations. Mixing different patterns can make the grate stiff or cause it to jam. Confirm the model code and full-set quantity in the manufacturer's parts list; this listing supplies one bar, and older inset versions may use different counts.
