Stove glass fitting can be arranged in store - drop off & collection service for stove doors.

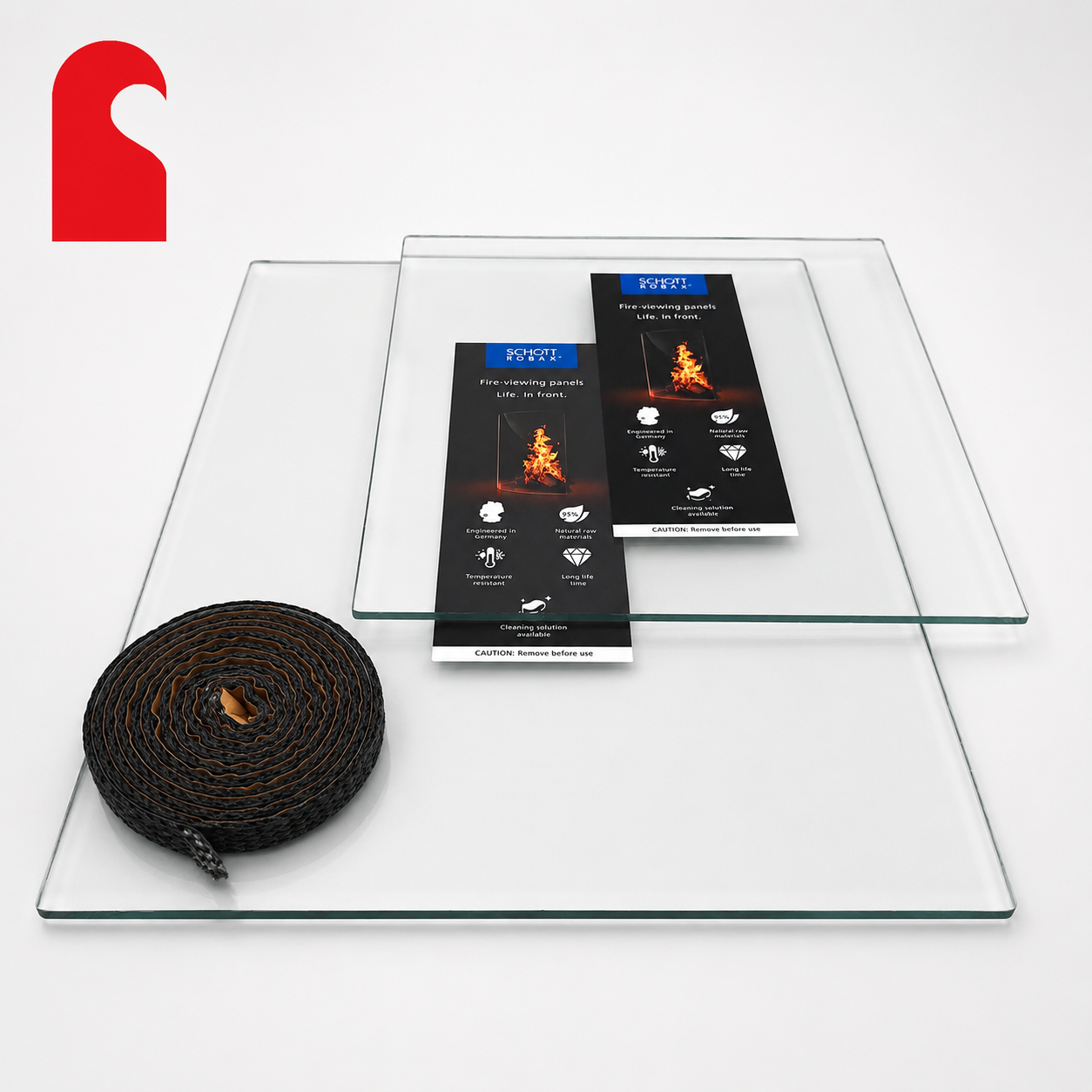

Premium 4mm genuine SCHOTT ROBAX® heat-resistant glass-ceramic, precision cut for Charnwood C-Four, C-Five, C-Six, C-Seven and C-Eight stoves.
Select your exact model from the dropdown menu to receive the correct glass size.
Every replacement panel is also supplied with a new self-adhesive high-temperature glass seal.
The glass seal forms the protective cushion between the ceramic glass and the metal stove door. It helps the pane sit evenly, distributes pressure from the glass retainers and prevents direct glass-to-metal contact as the stove heats and cools.
The existing seal is often compressed, hardened or damaged when the old glass is removed. Reusing a worn seal can leave the replacement pane unevenly supported and vulnerable to concentrated pressure points.
Supplying a fresh seal with every panel gives you the essential components needed for a careful and secure installation.
Please note: this is the thin flat seal used when fitting the stove glass. It is not the larger round rope fitted around the outer edge of the stove door.
| Charnwood Model | Glass Size |
|---|---|
| C-Four, C-Four BLU, C-Four Insert / C-Four I, C-Four Duo | 280 × 275 × 4mm |
| C-Five, C-Five BLU, C-Five Duo | 340 × 255 × 4mm |
| C-Six, C-Six BLU | 280 × 275 × 4mm |
| C-Seven, C-Seven BLU | 378 × 285 × 4mm |
| C-Eight, C-Eight BLU | 384 × 310 × 4mm |
Remove the old glass and seal carefully, then clean the glass recess thoroughly.
Apply the new seal evenly so the glass-ceramic does not sit directly against the metal door frame.
Refit the glass retainers gradually and evenly. Do not overtighten the clips or screws. They should hold the pane securely without rigidly clamping it, as excessive or uneven pressure may cause the glass to fracture.
One glass panel is supplied.
This product is made from genuine SCHOTT ROBAX® glass-ceramic and is precision cut by Stove Spare Glass Ltd as a compatible replacement for the stated Charnwood models. It is not an original Charnwood-branded spare part.
