Stove glass fitting can be arranged in store - drop off & collection service for stove doors.
Premium 4mm genuine SCHOTT ROBAX® heat-resistant glass-ceramic, precision cut for the listed Charnwood Country and Country Boiler stove models.
Select your exact stove model from the dropdown menu. Country 4 uses the larger 280 × 275mm panel, while Country 6, 8, 12, 14B, 15B and 16B use the same smaller replacement panel.
Stove Spare Glass Ltd is an official stockist of genuine SCHOTT ROBAX® fire-viewing glass-ceramic. Every panel is precision cut from original German-engineered SCHOTT ROBAX® material designed specifically for high-temperature stove and fireplace applications.

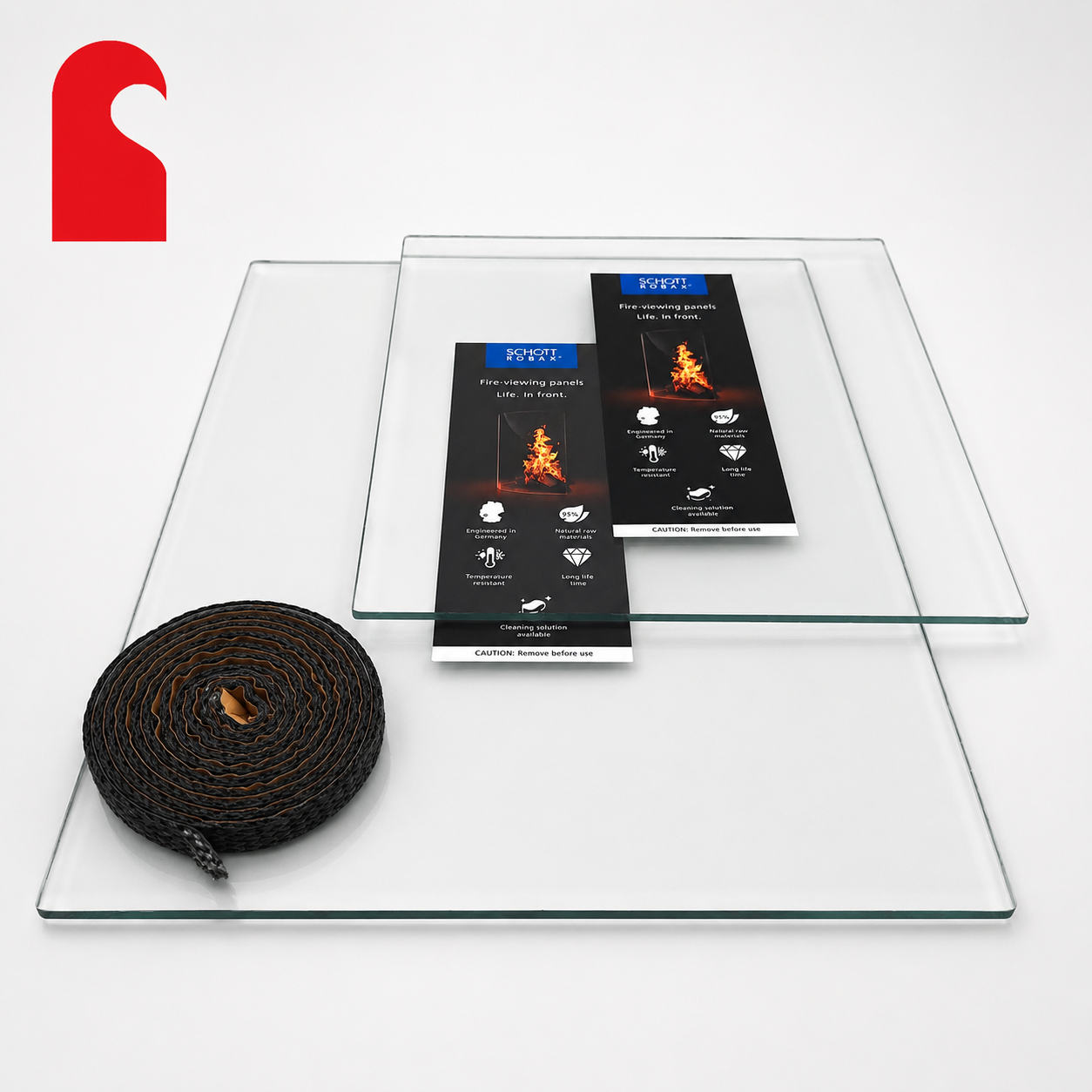

Every replacement panel is supplied with a new 8mm × 3mm self-adhesive high-temperature glass seal.
| Stove Model | Replacement Glass Size | Charnwood Glass Reference |
|---|---|---|
| Country 4 — MKI, MKII and BLU | 280 × 275 × 4mm | 006/PV19 |
| Country 6 — MKI and MKII woodburning | 278 × 178 × 4mm | 006/LW30 |
| Country 8 — MKI and MKII, woodburning and multifuel | 278 × 178 × 4mm | 006/LW30 |
| Country 12 — MKI and MKII, woodburning and multifuel | 278 × 178 × 4mm | 006/LW30 |
| Country 14B | 278 × 178 × 4mm | 006/LW30 |
| Country 15B | 278 × 178 × 4mm | 006/LW30 |
| Country 16B | 278 × 178 × 4mm | 006/LW30 |
Size note: Charnwood Country 6, 8, 12 and the listed Country boiler models are commonly associated with a nominal glass size close to 280 × 178mm. Our compatible replacement is precision cut to 278 × 178mm to provide suitable fitting clearance.
The glass seal forms the protective cushion between the glass-ceramic panel and the metal stove door. It helps the pane sit evenly, distributes pressure from the glass retainers and prevents direct glass-to-metal contact as the stove heats and cools.
The existing seal is often compressed, hardened or damaged when the old glass is removed. Reusing a worn seal can leave the replacement pane unevenly supported and vulnerable to concentrated pressure points.
Supplying a fresh seal with every panel gives you the essential components needed for a careful and secure installation.
Please note: this is the thin flat seal used when fitting the stove glass. It is not the larger round rope fitted around the outer edge of the stove door.
Allow the stove to cool completely. Remove the old glass and seal carefully, then clean the glass recess thoroughly before fitting the replacement.
Apply the new seal evenly without stretching it. Refit the glass retainers gradually and evenly.
Do not overtighten the clips or screws. They should hold the pane securely without rigidly clamping it, as excessive or uneven pressure may cause the glass to fracture.
This product is made from genuine SCHOTT ROBAX® glass-ceramic and is precision cut by Stove Spare Glass Ltd as a compatible replacement for the stated Charnwood models. It is not an original Charnwood-branded spare part. Charnwood model names and part references are used only to identify compatibility.
