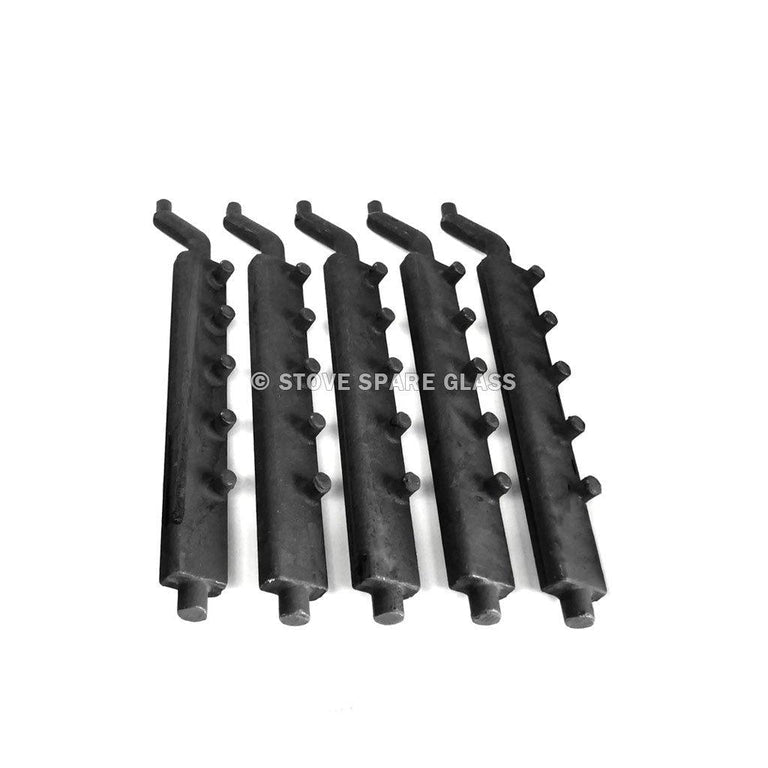

Charnwood Cove 1 Grate Bar Set (x5)

Charnwood Cove 1 MkI, MkII and SR Grate Bar Set – Five 002/CG01 Bars

A complete five-bar set for the listed Charnwood Cove 1 versions. These cast iron firebars replace the 002/CG01 pattern, supporting the fuel bed and allowing ash to pass through the riddling grate.

Technical specification

Compatible models Charnwood Cove 1 MkI, MkII and SR
Material Cast iron
Quantity 5 grate bars
Part code 002/CG01
Approximate length per bar 300 mm
Approximate weight 1 kg per bar; 5 kg per set
Supply Non-original compatible replacement parts

Check the complete bar group if riddling is stiff or the firebed has developed uneven gaps. Renewing a worn set together helps maintain a matching profile across the grate. Confirm the Cove 1 version and compare the 002/CG01 casting and approximate 300 mm length before ordering.
