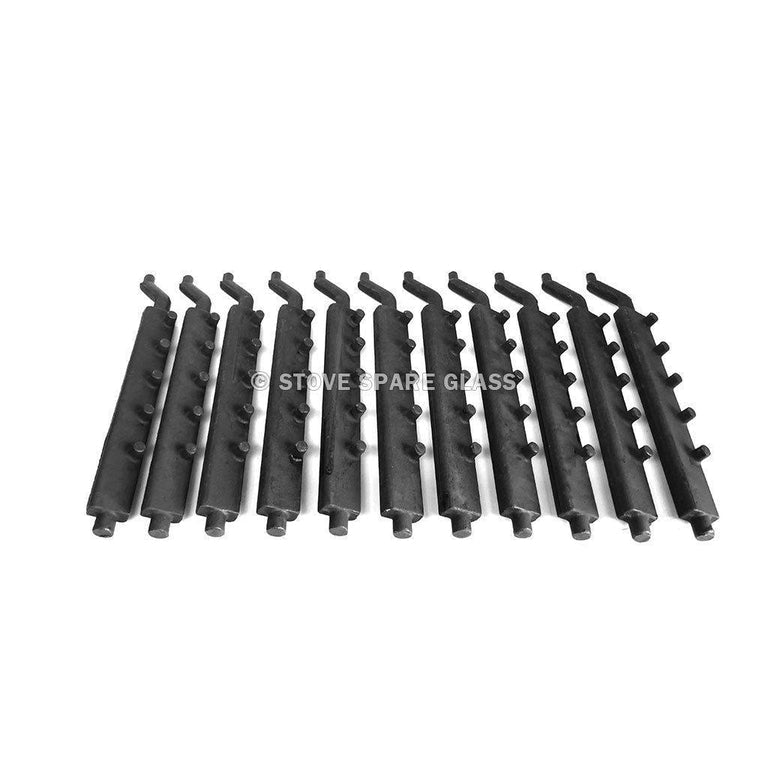

    Charnwood LA45iB / LA50iB Grate Bar Set (x11)

    Charnwood LA45iB / LA50iB Grate Bar Set (x11)

    £ 80.00 GBP You Save 26% ( £ 29.45 GBP ) You Save 26% ( £ 29.45 GBP )

    Charnwood LA45iB / LA50iB Inset Boiler Grate Set – Eleven 002/CG01S11 Bars

    This eleven-bar cast iron pack is intended for the Charnwood LA45iB and LA50iB inset boiler stoves. It replaces the complete firebar group within the riddling grate, renewing support beneath the fuel and the paths through which ash is removed.

    Technical specification

    Compatible models Charnwood LA45iB and LA50iB
    Quantity 11 grate bars
    Material Cast iron
    Set reference 002/CG01S11
    Approximate length per bar 300 mm
    Approximate weight 1 kg each; 11 kg per set
    Supply Non-original compatible replacement set

    Inspect the grate for uneven seating as well as visible fractures. Worn bars can restrict movement and leave ash beneath the fire, affecting airflow. Verify the LA45iB or LA50iB designation and compare the set reference and bar dimensions with the existing parts before ordering.
