Stove glass fitting can be arranged in store - drop off & collection service for stove doors.

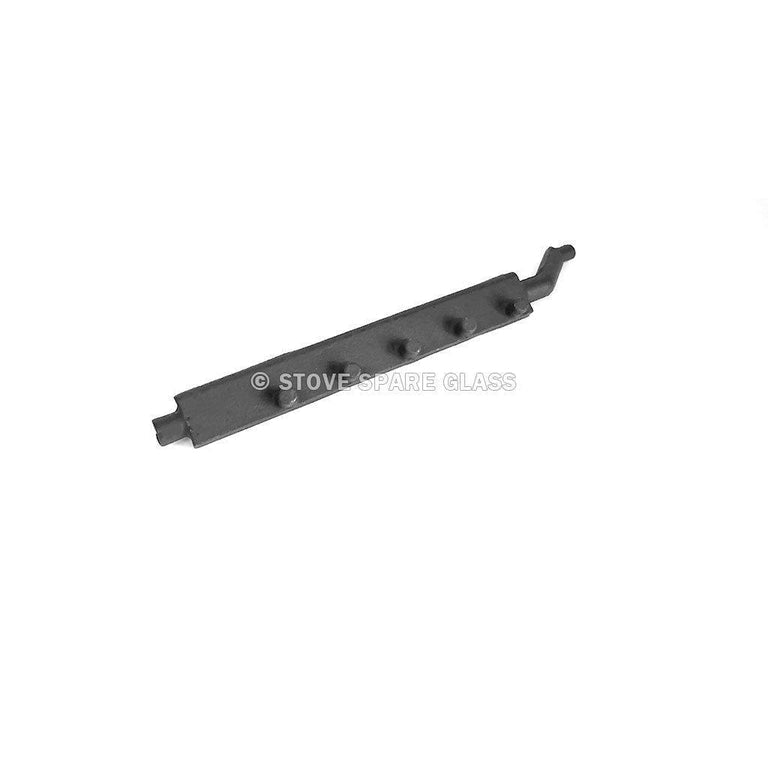

An individual cast iron firebar for the listed Charnwood stoves using the 002/CG01 pattern. Supplied singly, it can replace a damaged bar or be ordered in the correct quantity for a full grate renewal.
| Models requiring 14 bars per full set | Country 12 MF MkI / MkII; Country 14B; Country 15B; Country 16B MF / WB MkI / MkII |
| Models requiring 5 bars per full set | Cove 1 MkI / MkII; Cove 1 SR; Bay 5GT |
| Models requiring 11 bars per full set | LA45iB / LA50iB; DX45iB / DX50iB; CW40 / CW40B; CW45iB / CW50iB; CW50 / CW50B; Country 8 MF MkI / MkII |
| Models requiring 7 bars per full set | SLX20; LA20i; LA30i; DX20i MkI / MkII; CW20i |
| Models requiring 10 bars per full set | SLX45 MkI / MkII |
| Material | Cast iron |
| Quantity supplied | 1 grate bar |
| Part code | 002/CG01 |
| Approximate length | 300 mm |
| Approximate weight | 1.3 kg |
| Supply | Non-original compatible replacement |
Compare the original bar profile as well as its code when replacing an individual component. Cracked or distorted bars can obstruct riddling and leave the fuel unevenly supported. Confirm the exact model and version before ordering; the quantities listed are for full sets, while this product supplies one bar. Consider renewing the set if the remaining bars are also worn or use an older pattern.
