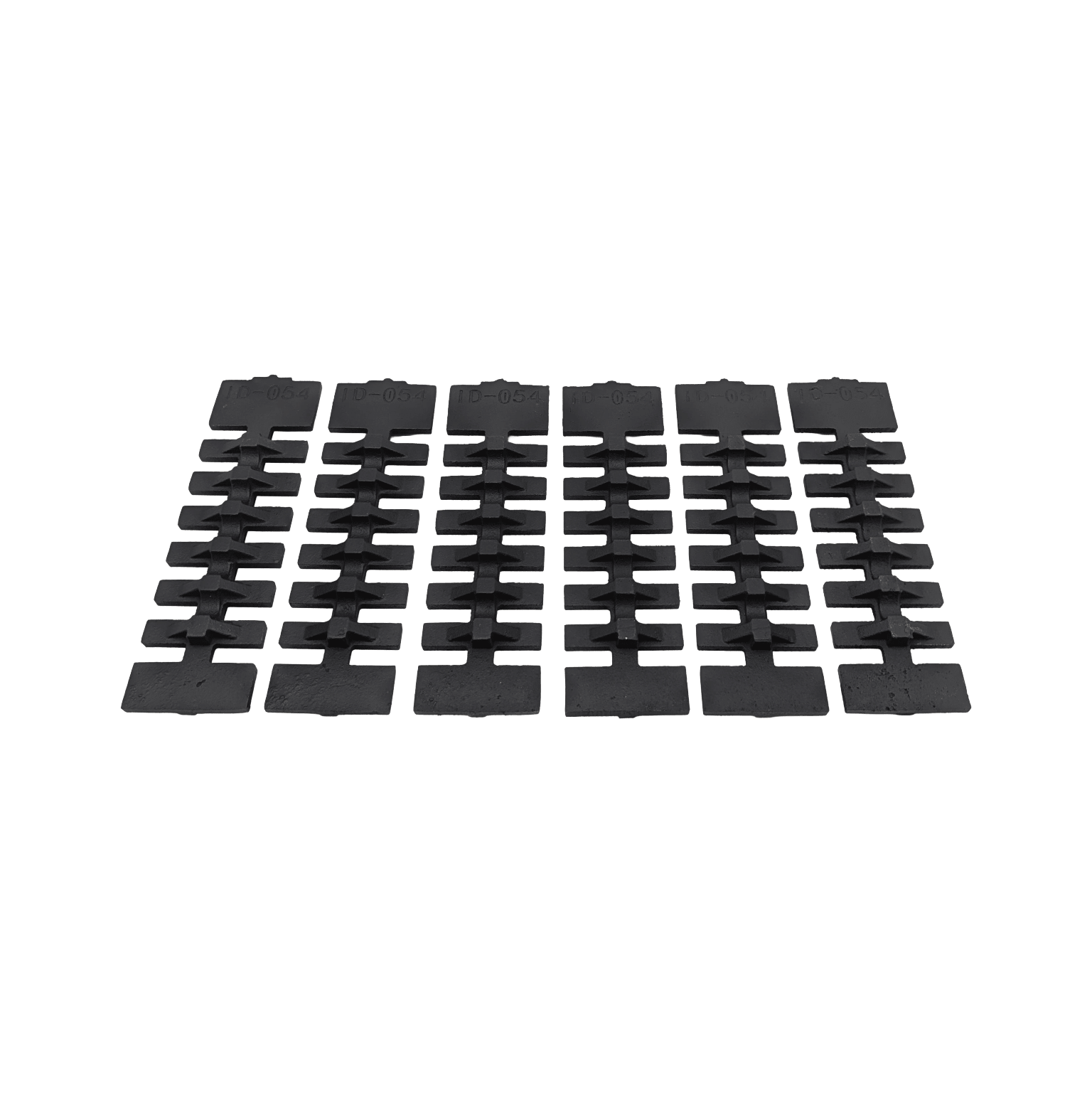

Dunsley Highlander 10 Upper Grate Bar Set (x6)

Dunsley Highlander 10 Upper Riddling Grate Bar Set – Six Cast Iron 02106 Bars

This model-specific six-bar pack renews the upper section of a Dunsley Highlander 10 grate. The aftermarket cast iron bars allow worn upper components to be replaced while retaining serviceable lower bars.

Technical specification

Compatible model Dunsley Highlander 10
Part type Upper riddling grate bar set
Dunsley reference 02106
Material High-grade cast iron
Contents 6 upper grate bars
Approximate weight per bar 1.15 kg
Supply Aftermarket replacement set
Scope Upper bars only; lower bars are not included

Examine the upper bars for cracks and areas burnt through when carrying out a grate repair. If both levels are worn, a complete upper-and-lower set may be more appropriate. Confirm the Highlander 10 model and 02106 bar reference before ordering this upper-only six-bar pack.
