Hi-Flame R4 Eco Design Wood Burning Stove

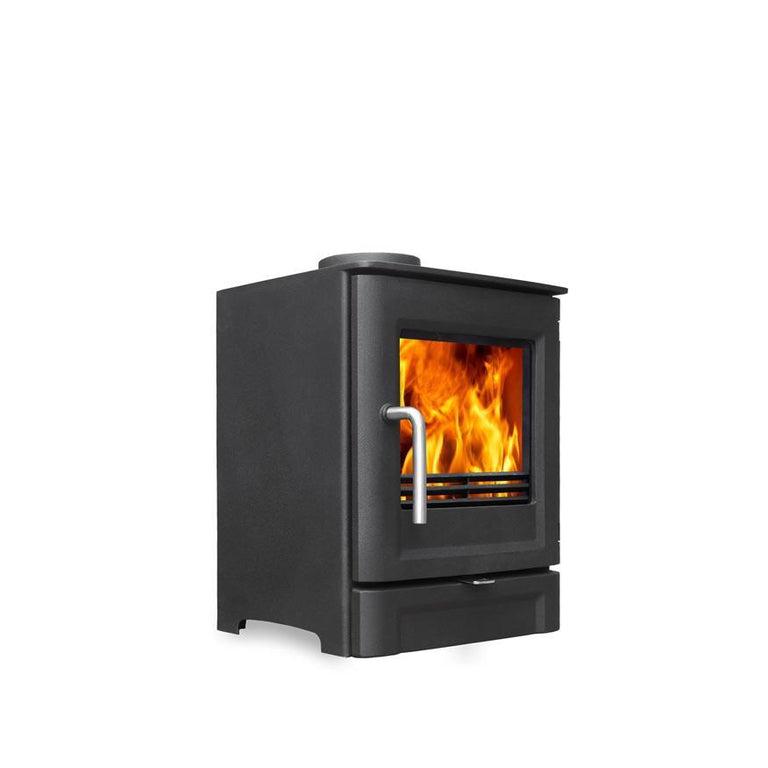

Hi-Flame R4 Eco design Wood Stove

With its practical compact format, the R4 is ideal for the smaller fireplace, smaller living space or low energy house. A built-in direct external air supply inlet is standard and there is one discreet user-friendly slider control to provide the perfect blend of combustion air which will ensure an ultra-clean burn throughout the whole burn cycle, as well as keep the clear glass. There’s a larger than average window and the subtleF-Type detailing on the cast iron door is carried through to the low cast iron-fronted plinth to create a seamless contemporary design



Specification

•76.4% Efficiency (seasoned wood logs)
•Defra smoke exempted appliance allows you to burn wood in a Smoke Control Area
•SEAI verified efficiency and output
•Emissions significantly lower than the Ecodesign limits. For example PM is22, some 45% lower than the minimum
•CO 0.10  /  NOx 116  /  OGC 105  /  PM 22
•Premium quality steel bodywork with F-type cast iron door and plinth fascia
•3.7kW output. Does not normally require a dedicated air vent, subject to Building Regs’
•Takes standard 250 mm (10”) logs

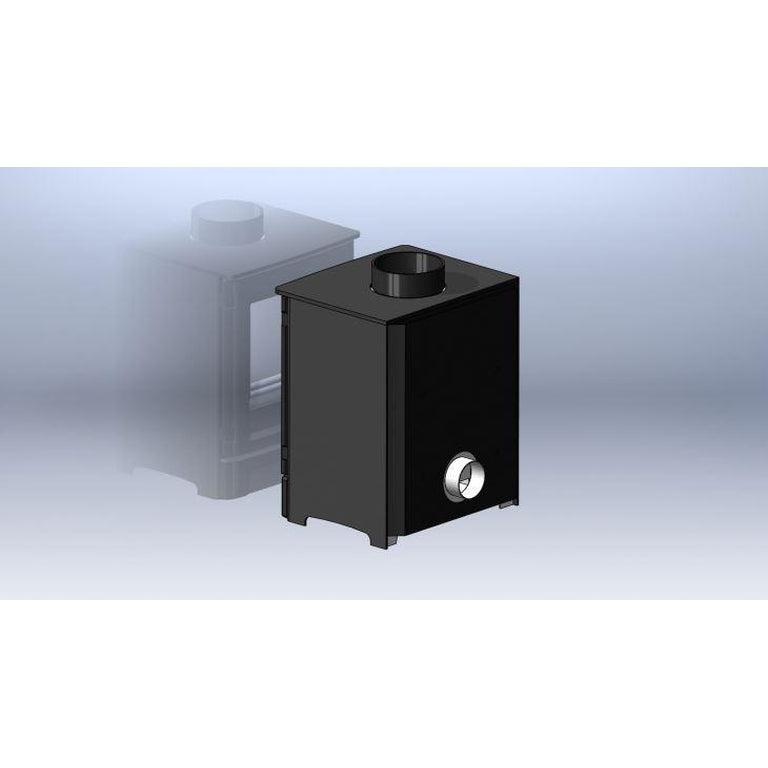

•Built in 75 mm direct external air supply (DEAS) inlet for low energy houses
•Just one simple slider control for ease of use
•Suitable for 12 mm hearth, subject to Regs’
•Overall dimensions: H455  W370  D323mm

Drawing
