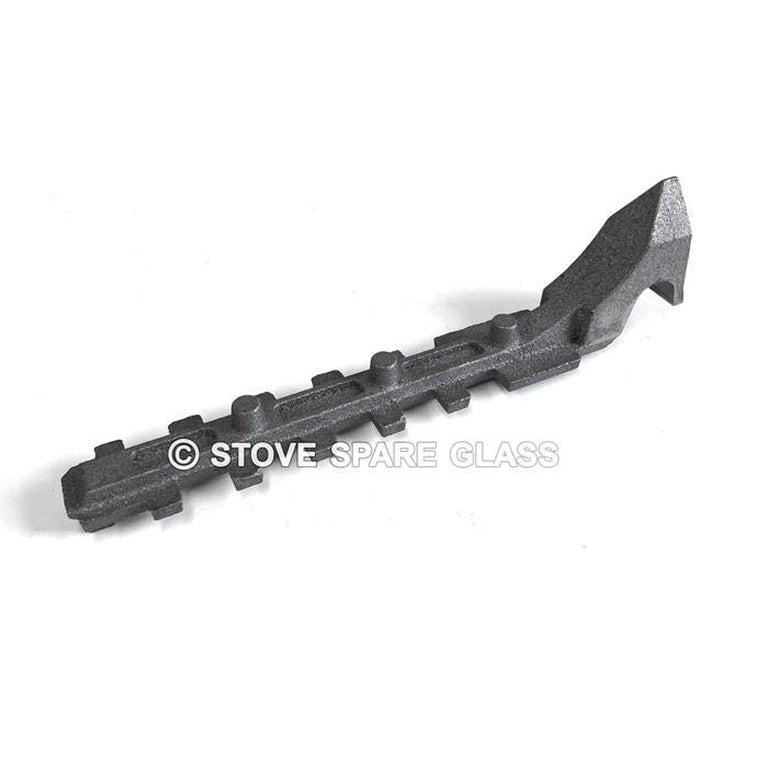

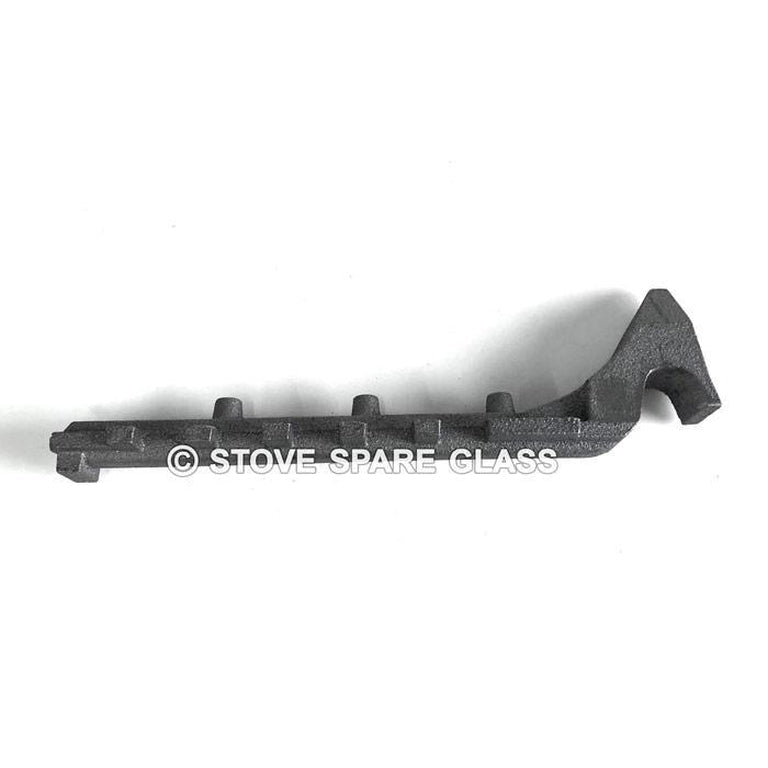

An individual cast iron lower bar for the listed Hunter grate arrangements. The big-end design has a larger hook and sits lower on the shaker bar, working with the upper bars to support fuel and allow riddling.
| Compatible models | Hunter Herald 8; Herald 8 Boiler; Hunter Inset 7 |
| Part type | Lower / big-end grate bar |
| Part number | HHR08029 |
| Quantity supplied | 1 bar |
| Approximate length | 268 mm |
| Material | Cast iron |
| Supply | Non-original compatible replacement |
| Herald 8 full-set arrangement | 9 lower bars and 8 upper bars |
| Herald 7 Inset full-set arrangement | 5 lower bars and 4 upper bars |
| Version restriction | The design changed in early 2007. Original Mk1 bars and newer bars are not cross-compatible; replace the whole set for the initial changeover |
Compare the larger hook and approximately 268 mm length with the lower bar already fitted. Cracking or distortion can obstruct the matching upper bars and reduce effective ash clearance. Confirm the model and grate generation before ordering, and check the model-specific set quantity if more than one bar needs replacement.
