Morso Squirrel 1410 / 1430 / 1440 Baffle Plate

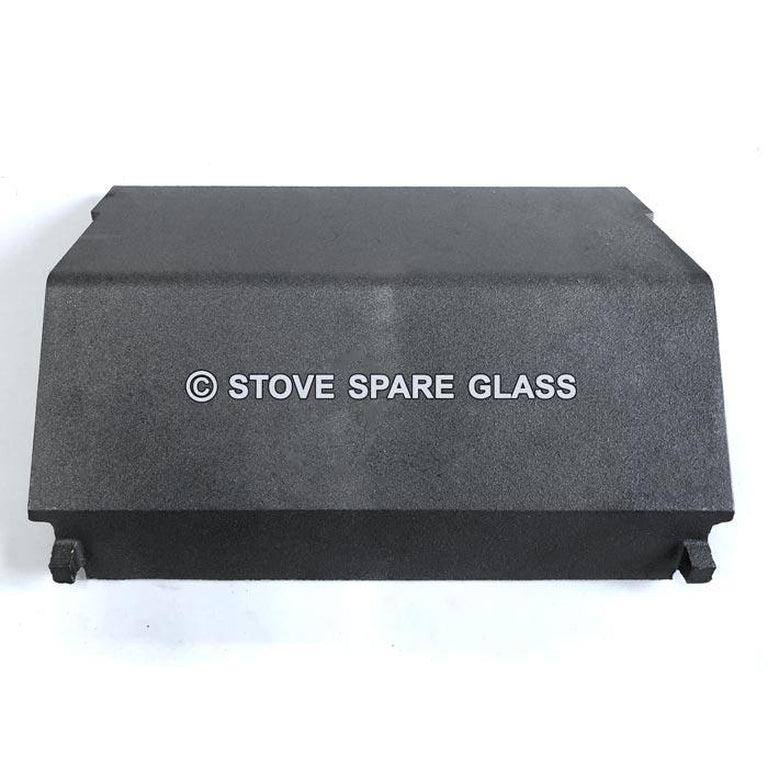

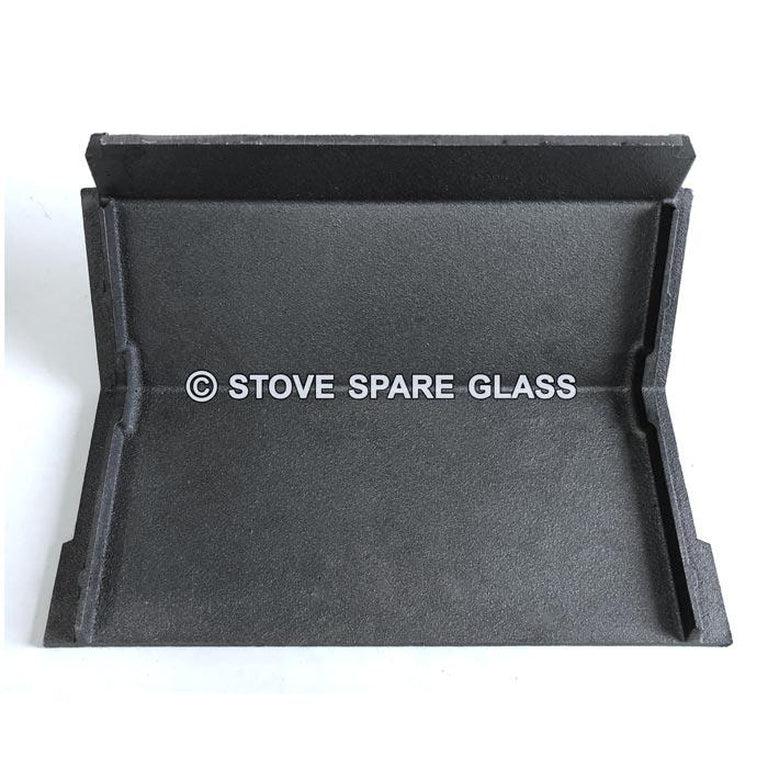

Morso Squirrel 1410 / 1430 / 1440 and Swift 1000 Cast Iron Baffle Plate

A replacement throat plate for the listed Morso Squirrel multifuel models and Swift 1000. The cast iron baffle rests on the firebricks at the top of the firebox, directing heat and gases through the intended route above the fire.

Technical specification

Compatible models Morso Squirrel 1410, 1430 and 1440; Morso Swift 1000
Part type Baffle / throat plate
Material High-grade cast iron
Position On the firebricks at the top of the firebox
Supply Non-original compatible replacement

Look for cracks, thinning or distortion when checking the upper firebox. A damaged plate can leave direct gaps towards the stove throat and affect heat retention. Confirm your exact model against this baffle's list before ordering; compatibility for other Squirrel grate parts should not be assumed to apply to the baffle.
