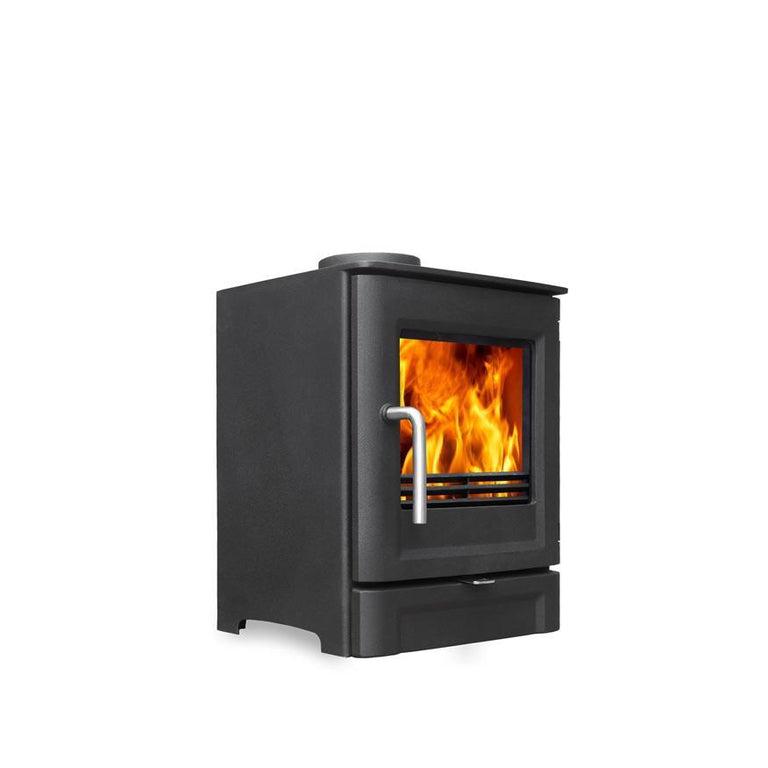

R4 Compact Ecodesign Stove

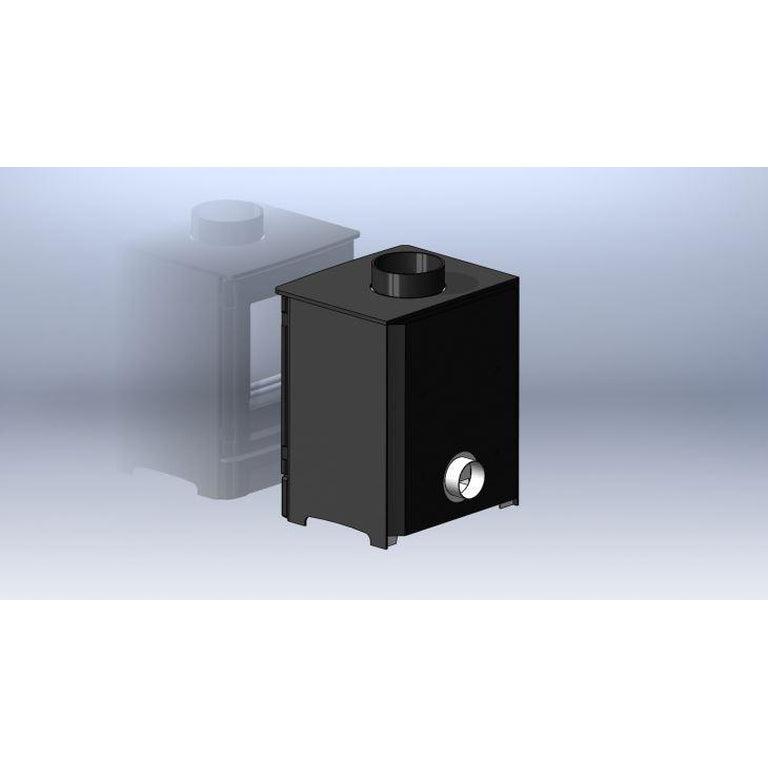

This has all of the features gf its bigger brothers, the R5 and R6, but in a practical compact format, making it ideal for the smaller fireplace or smaller living space. A direct external air supply outlet is standard and there is one single user-friendly slider control to provide the perfect blend of combustion air to ensure an ultra-clean burn throughout the whole burn cycle and keep a clear glass. The subtle F-Type detailing on cast iron door, which covers the whole of the stove front, is carried through to the low cast iron-fronted plinth to create a seamless contemporary design with a larger than average sized window for a compact wood burner. The R4 is Ecodesign Ready and Defra Approved.

Specification

Model name

R4 EcoDesign

Nominal heat output to room

3.7kW

Efficiency(%)

77

Dimension(H*W*D)(mm)

455*370*395

Flue outlet

5in/125mm

Glass size(mm)

258*238

Combustion chamber/ firebox size(mm)

310*190*245

Maximum log length(mm)

280

Maximum Fuel Load(KG)

1.6

Ecodesign Energy Efficiency Rate

A

Mean CO emission (vol%)

0.1

Gross weight(kg)

54

Net weight(kg)

45

Drawing

Documents

R4 Instruction Handbook

ERP Label R4

ERP Data R4

ERP Fiche R4

EcoDesign 2022 Test Results

Dimensions
