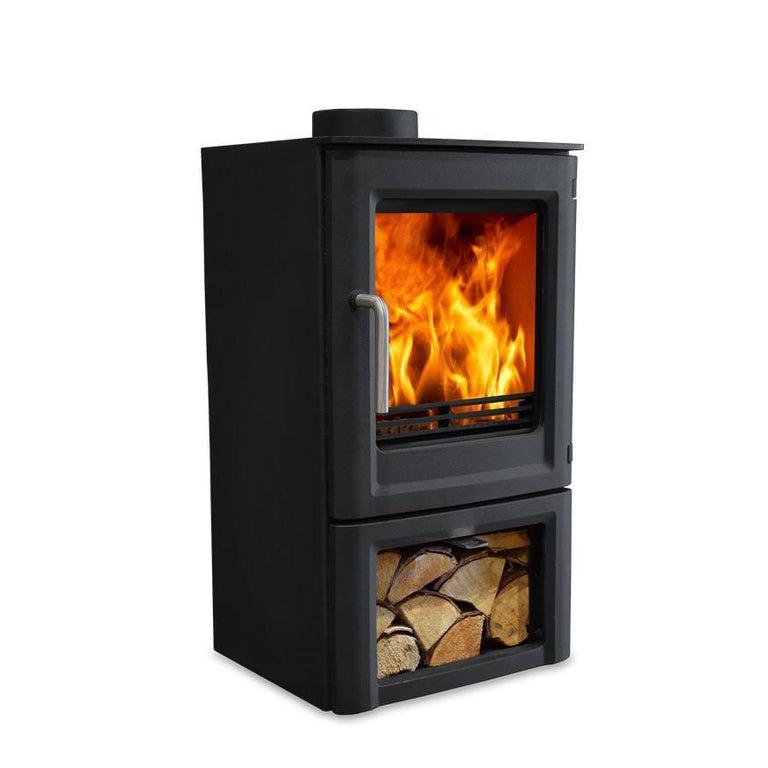

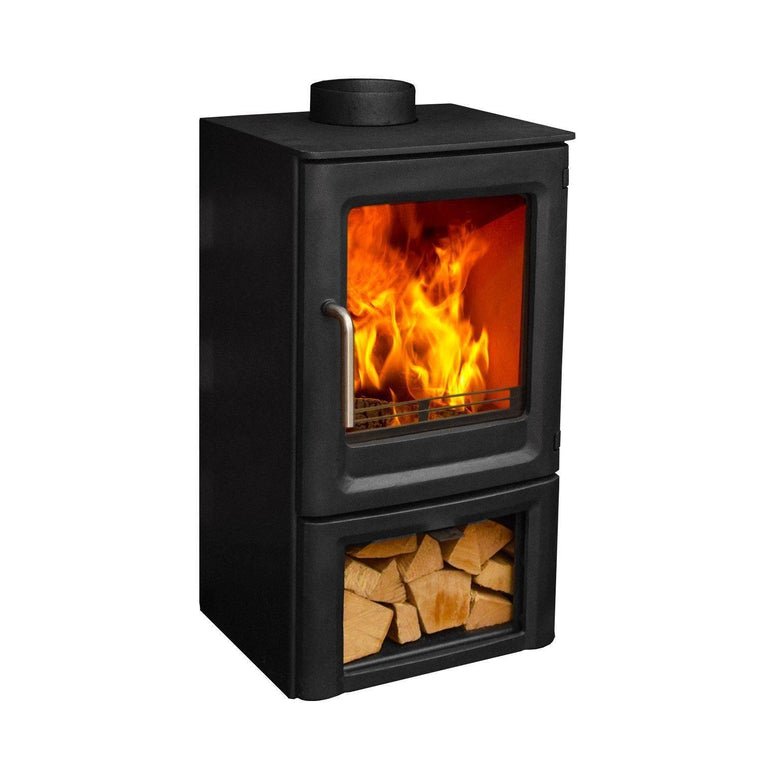

R5-LS Superior Ecodesign Stove

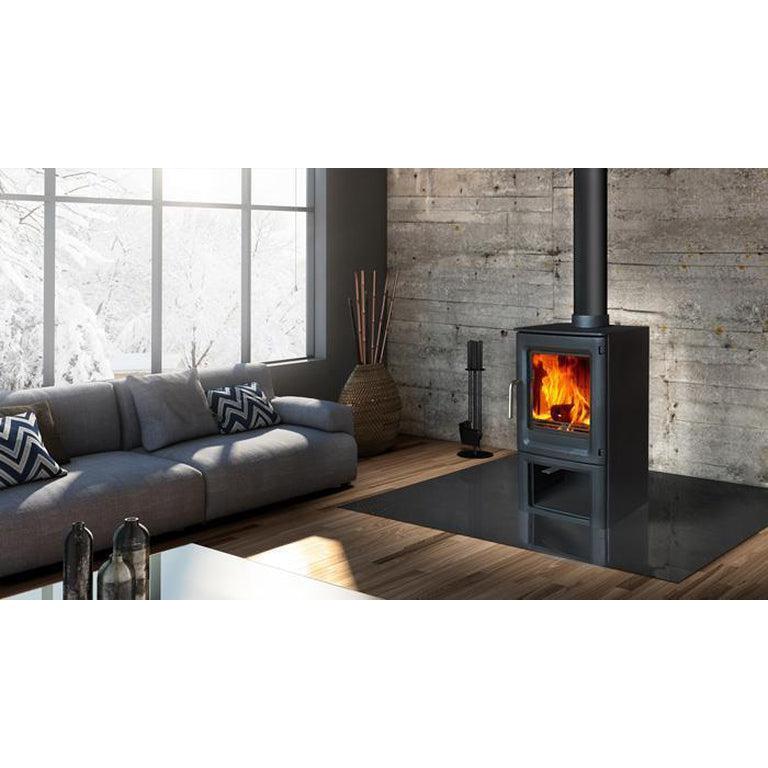

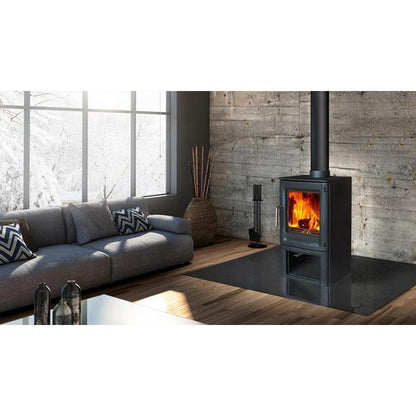

R5 Logstore Eco Design Stove by Hi-Flame. Looks great free standing but also is a good size to fit in an existing fireplace opening.

Specification

Model name

R5-LS

Nominal heat output to room(kw)

5

Efficiency(%)

83

Dimension(H*W*D)(mm)

680*387*348

Flue outlet

5in/125mm

Glass size(mm)

283*313

Combustion chamber/ firebox size(mm)

329*215*270

Maximum log length(mm)

305

Maximum Fuel Load(KG)

1.8

Ecodesign Energy Efficiency Rate

A+

Mean CO emission (vol%)

0.08

Gross weight(kg)

82.4

Net weight(kg

71.4

Drawing

Documents

R5 Instruction Handbook

ERP Label R5

ERP Data R5

ERP Fiche R5

EcoDesign 2022 Test Results

Dimensions
