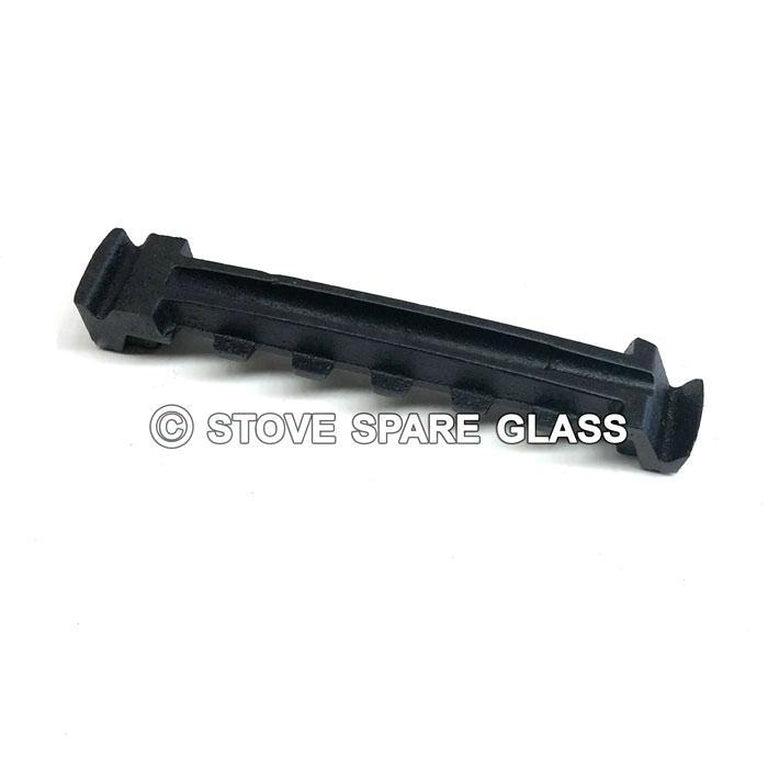

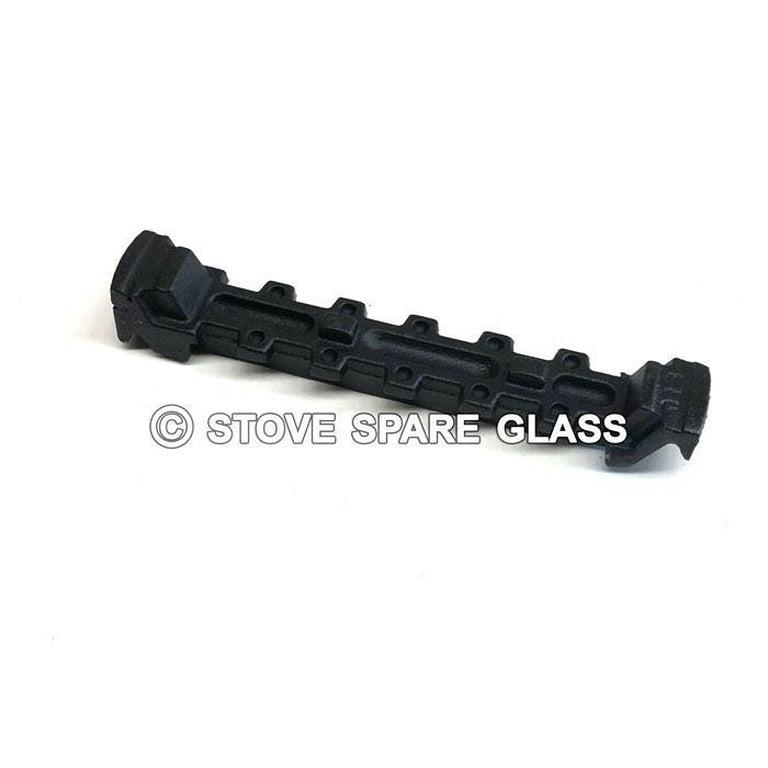

Nine AFS001 firebars supplied for the Stratford Ecoboiler 12 HE's nine-bar grate arrangement. The cast iron set follows the CST019 pattern, replacing older NGB1B-style bars while renewing the support and ash-clearance surface beneath the fuel.
| Compatible model | Stratford Ecoboiler 12 HE, nine-bar configuration |
| Quantity | 9 grate bars |
| Material | Cast iron |
| Part number | AFS001 |
| Casting references | CST019 / NGB1B |
| Approximate length per bar | 222 mm |
| Approximate weight per bar | 0.65 kg |
| Supply | Non-original compatible replacement set |
An uneven grate can make riddling ineffective even before a bar breaks completely. Inspect for distortion and wear when servicing the fuel bed. Confirm the exact Ecoboiler 12 HE model and its nine-bar arrangement before ordering, and compare the existing bars with the AFS001 reference and approximate length.
