Stove glass fitting can be arranged in store - drop off & collection service for stove doors.

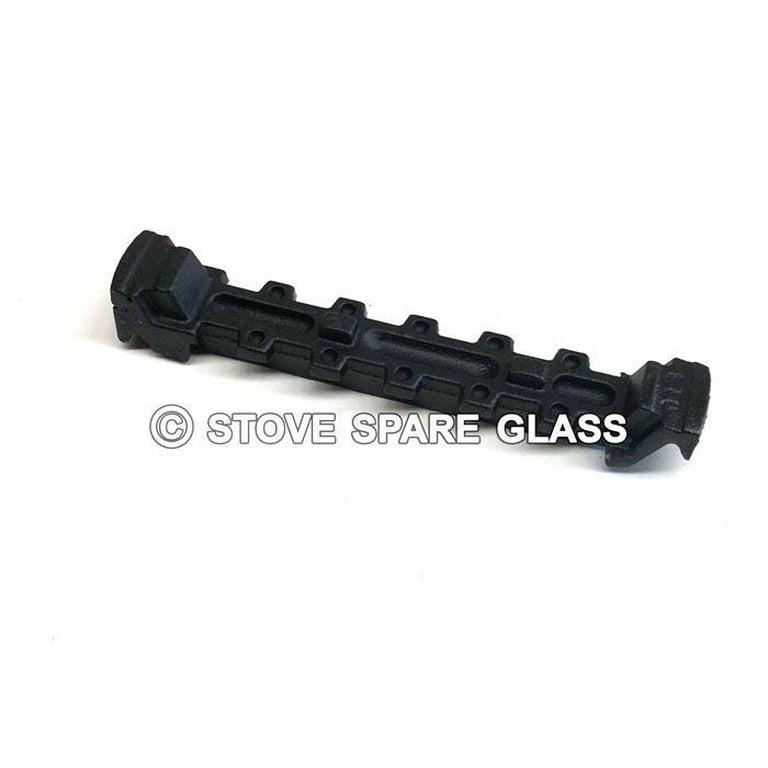

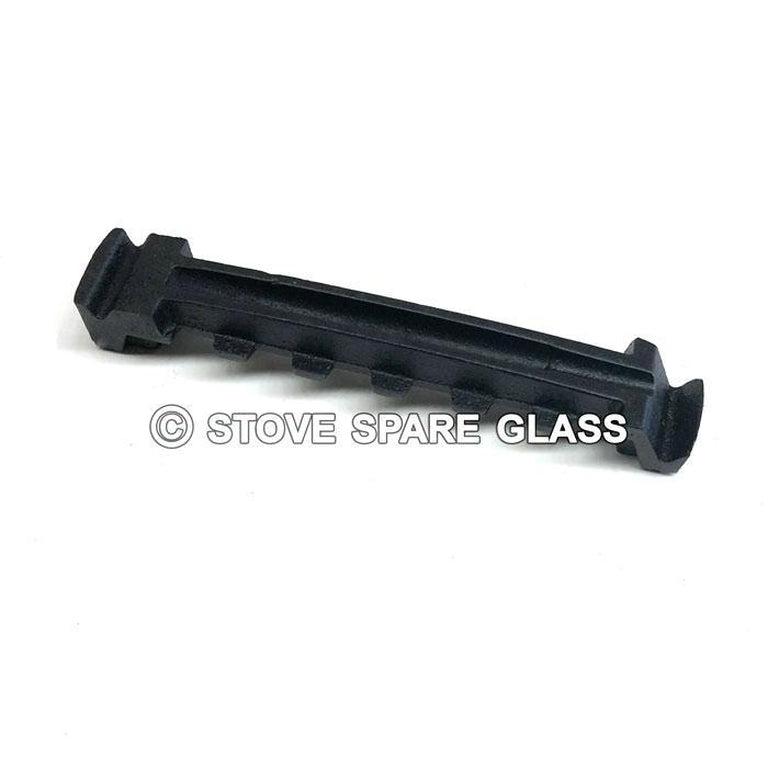

Eleven cast iron AFS001 bars supplied for a complete grate renewal in the Stratford Ecoboiler 16 HE. The CST019 profile replaces the older NGB1B pattern, restoring the bar arrangement beneath the fuel bed.
| Compatible model | Stratford Ecoboiler 16 HE |
| Contents | 11 grate bars |
| Part number | AFS001 |
| Casting references | CST019 / NGB1B, interchangeable |
| Material | Cast iron |
| Approximate length per bar | 222 mm |
| Approximate weight per bar | 0.65 kg |
| Supply | Non-original compatible replacement set |
Worn or mismatched bars may snag the mechanism and restrict airflow under the fuel. Check the grate's movement and bar condition together when deciding on a full renewal. Confirm your Ecoboiler 16 HE and compare the shorter AFS001 profile and approximate 222 mm length with the old bars before ordering.
