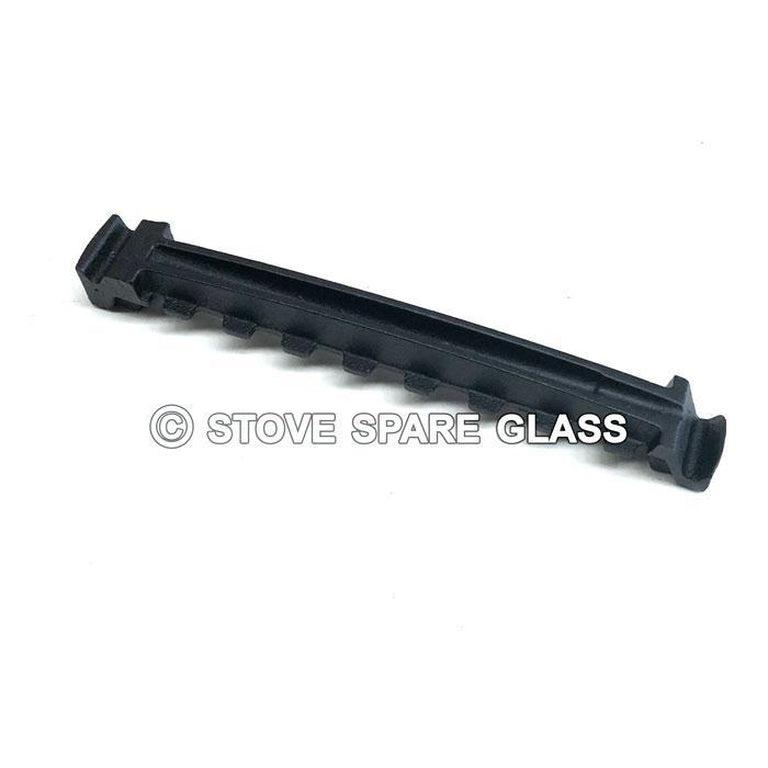

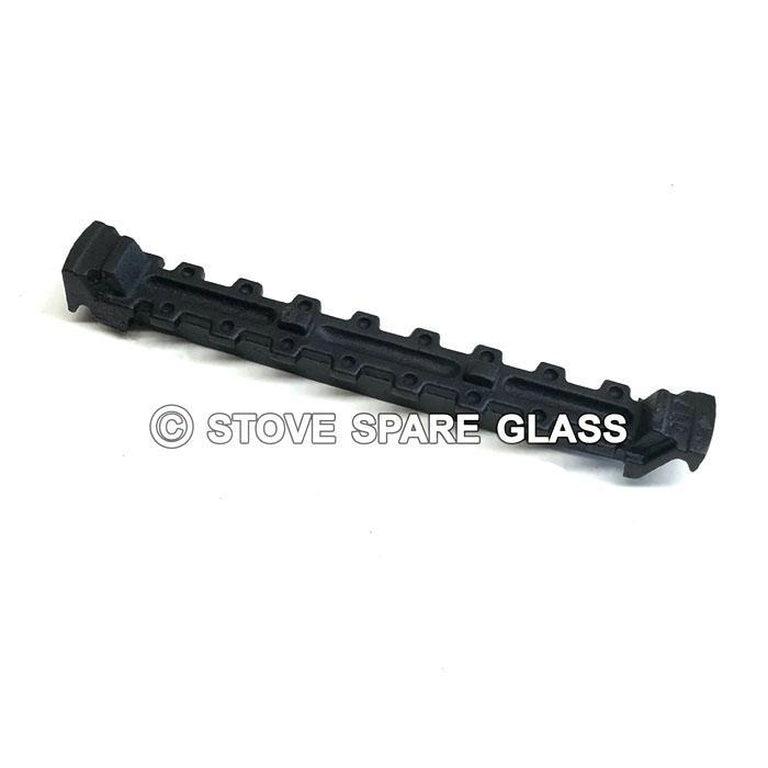

A full set of 13 cast iron grate bars for the Stratford Ecoboiler 25 HE. These AFS002 replacements follow the CST020 profile, interchangeable with the older NGB2B casting, to renew the fuel bed and its riddling surface.
| Compatible model | Stratford Ecoboiler 25 HE |
| Quantity | 13 grate bars |
| Part number | AFS002 |
| Casting references | CST020 / NGB2B, interchangeable |
| Material | Cast iron |
| Approximate bar length | 292 mm |
| Approximate weight per bar | 0.89 kg |
| Supply | Non-original compatible replacement set |
Distorted or mixed-profile bars can catch during riddling and leave air passages uneven. A matching full set helps restore a level fuel bed and consistent grate movement. Confirm the Ecoboiler 25 HE model, bar length and AFS002 profile against the existing grate before ordering the 13-bar set.
