Stove glass fitting can be arranged in store - drop off & collection service for stove doors.

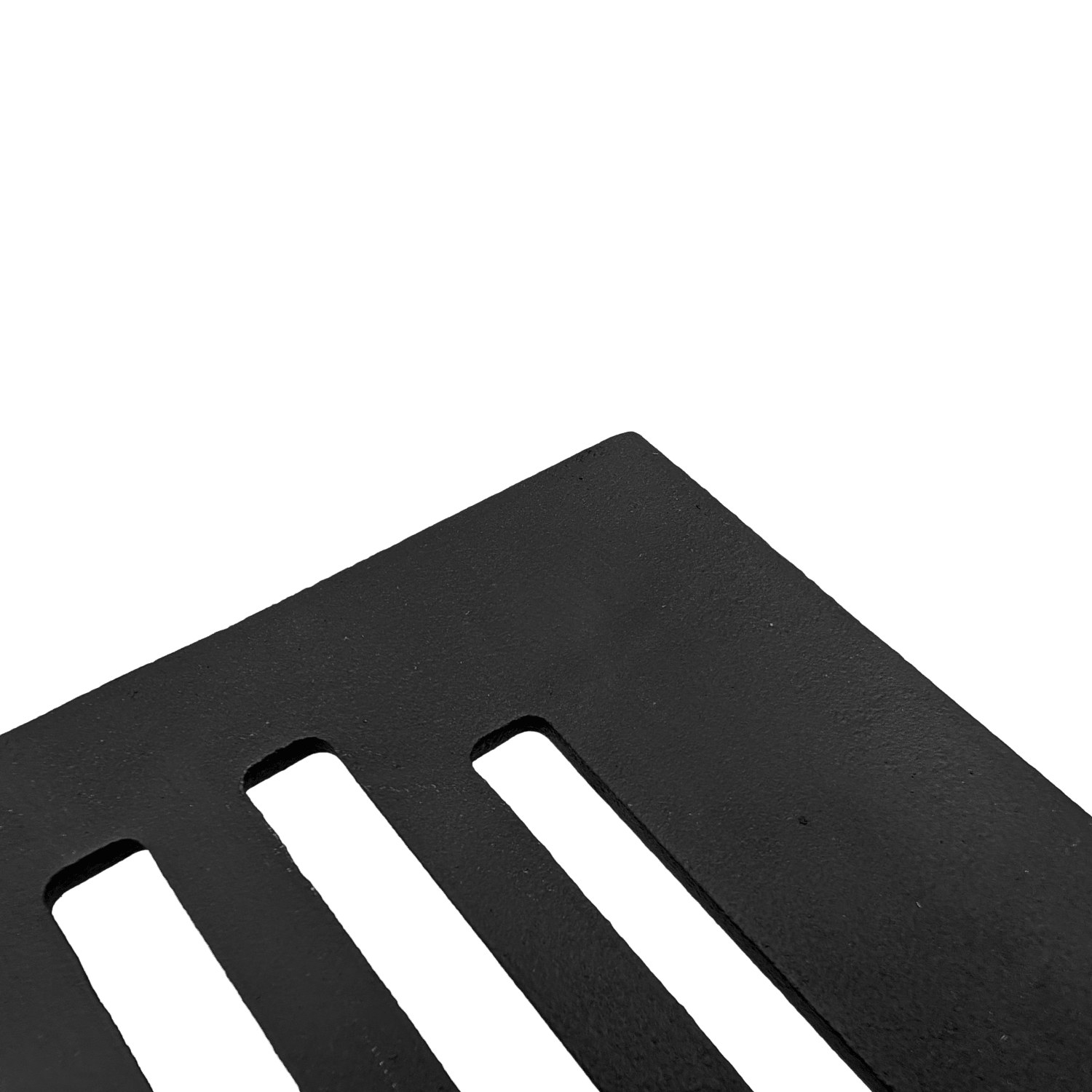

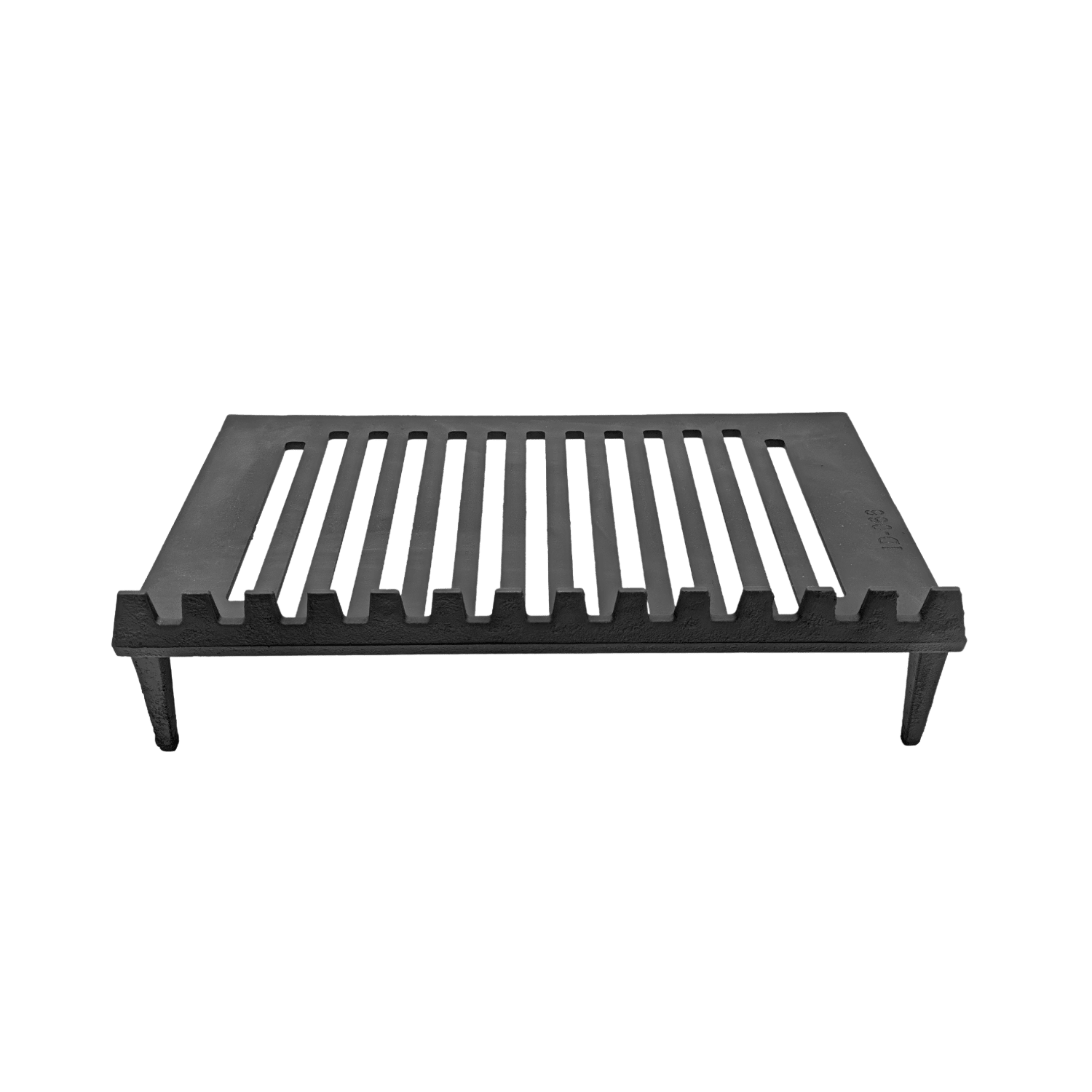

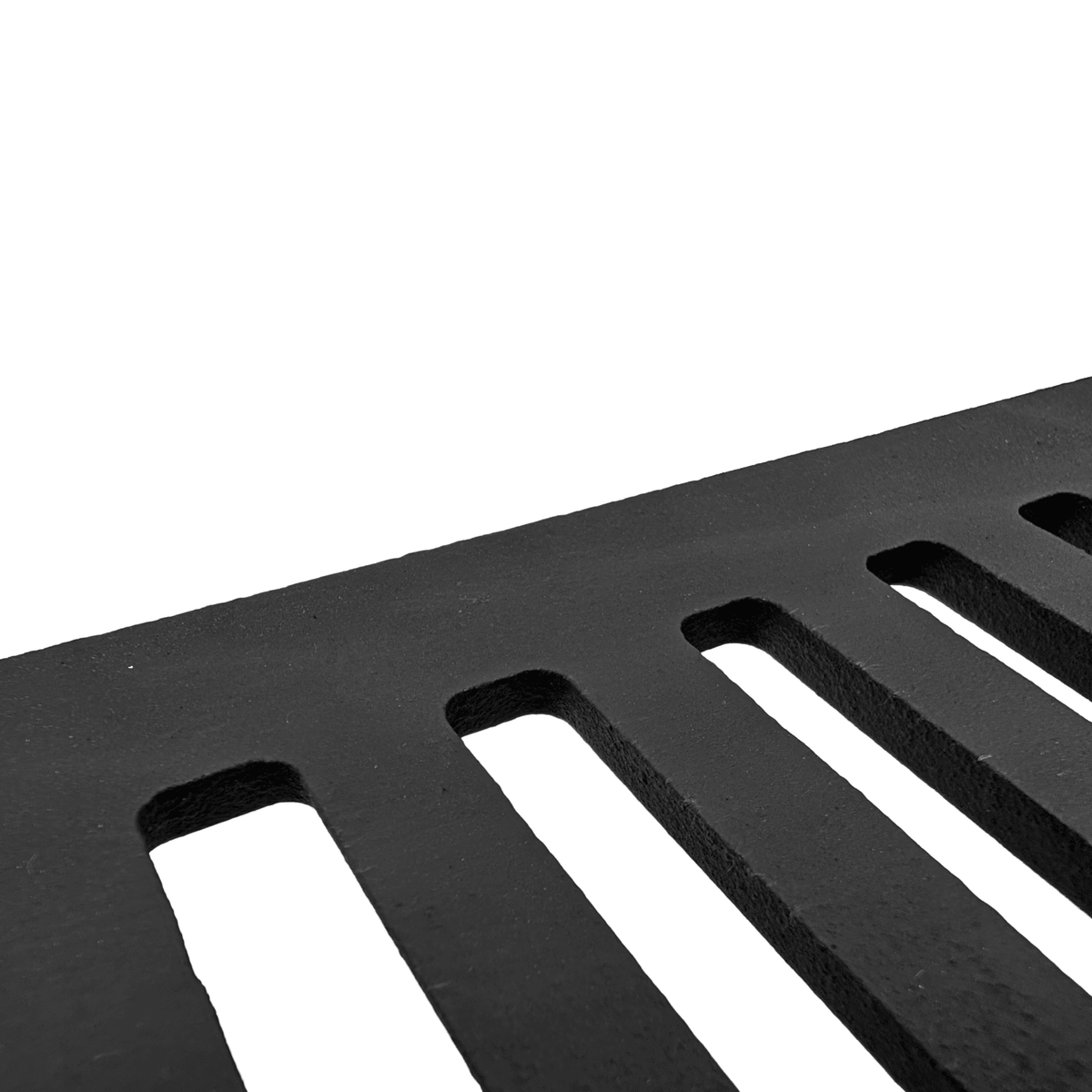

A substantial cast iron firebox grate for the JA006 pattern and listed compatible stoves. It supports the fuel above the ashpan, with a raised front fence and openings that allow combustion air to reach the underside of the fire.
| Listed compatibility | Sunrain JA006 / JA006, VO006, TST006, Winterwarm and Foxhunter; compare the original grate pattern |
| Material | Cast iron |

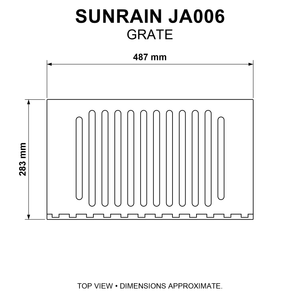

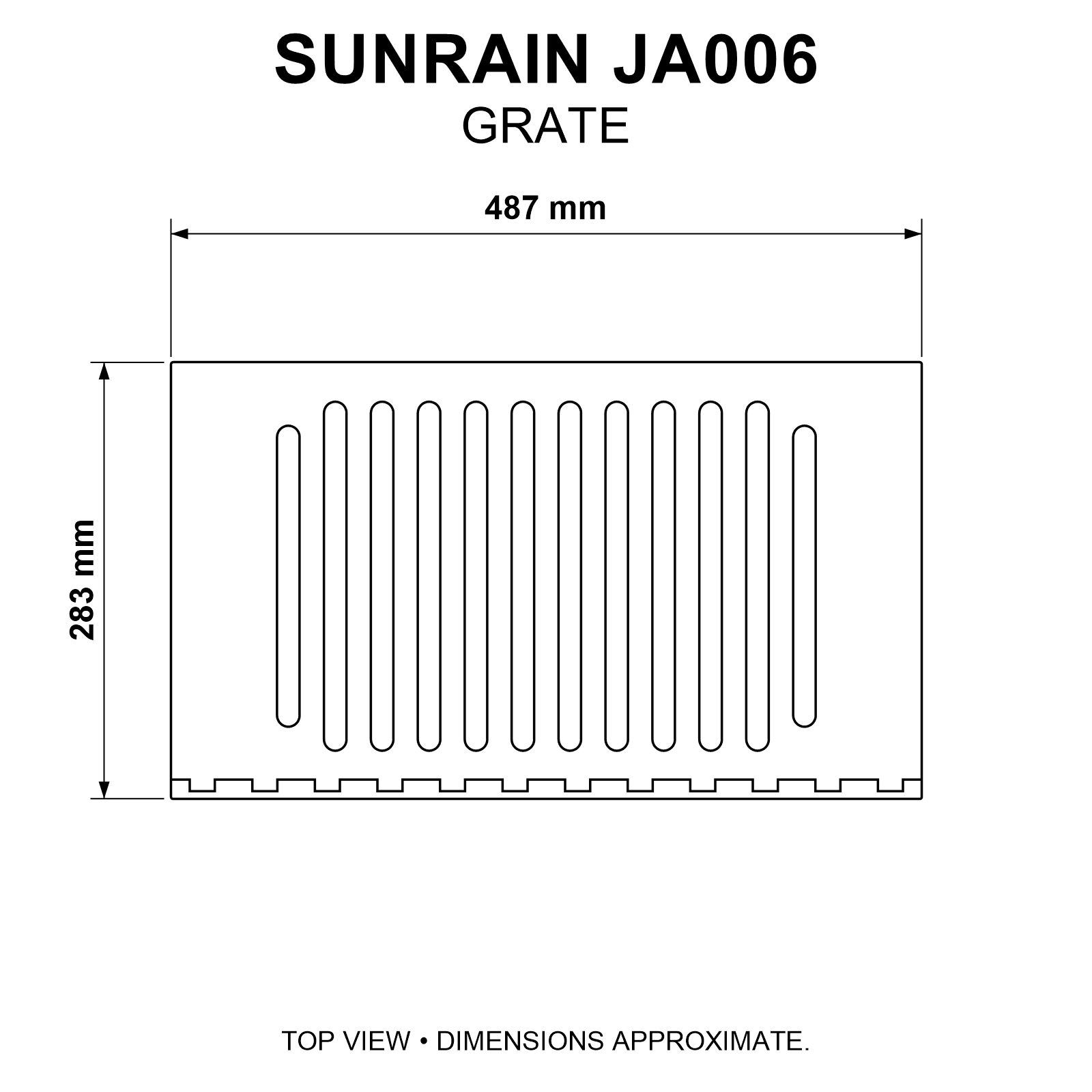

| Approximate width | 487 mm |
| Approximate depth | 283 mm |
| Approximate height to front fence top | 140 mm |
| Approximate height to grate bed | 110 mm |
| Weight | 6.91 kg |
| Supply | Non-original compatible replacement |
| Measurement note | Small casting variations are possible |
A worn grate can lose sections that support the fuel or restrict airflow through distorted openings. Confirm the stove model and compare all four measurements with your old grate before ordering, allowing for small casting differences. The baffle above the fire is a separate component and should be checked independently if it also needs replacement.
