Stove glass fitting can be arranged in store - drop off & collection service for stove doors.

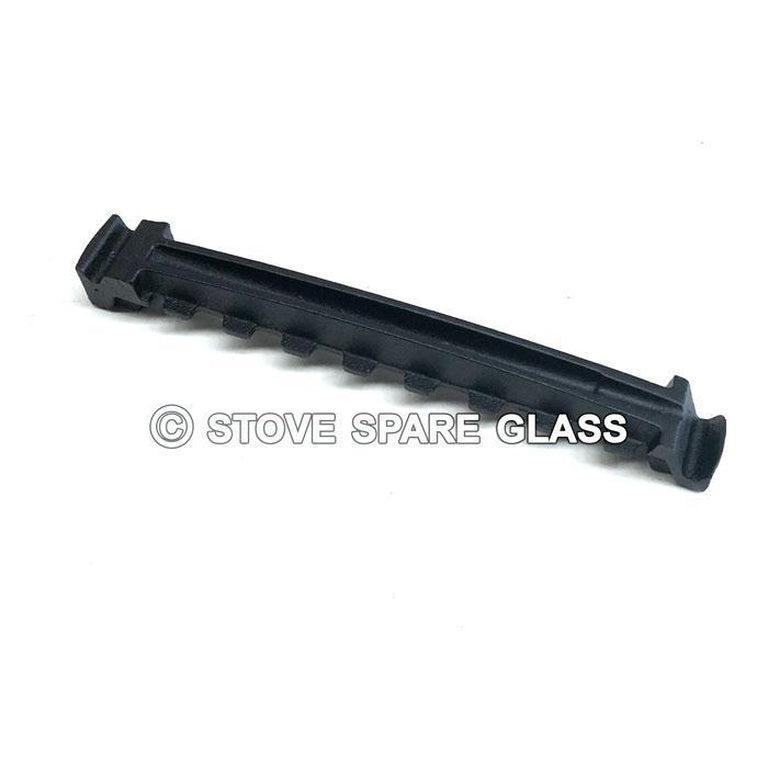

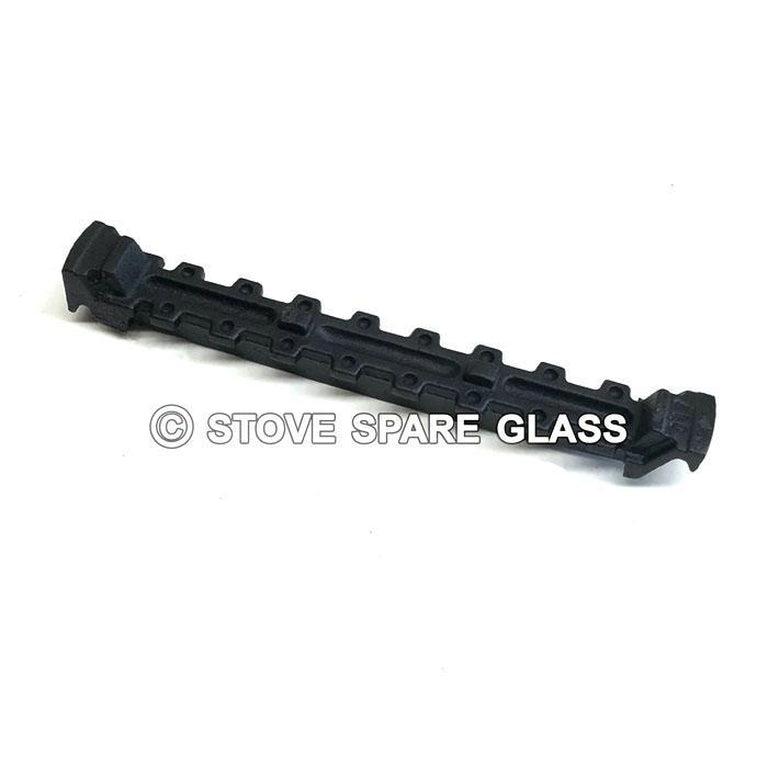

An eleven-bar cast iron set for the Villager Boiler 20 Duo application listed against AFS002. The replacement bars use the NGB2B / CST020-type pattern to renew the fuel bed within the riddling grate.
| Compatible model | Villager Boiler 20 Duo using the eleven-bar AFS002 arrangement |
| Quantity | 11 grate bars |
| Material | Cast iron |
| Reference | AFS002 |
| Replacement pattern | NGB2B; comparable CST020 profile |
| Approximate length per bar | 290 mm |
| Approximate weight | 0.89 kg per bar; 9.79 kg total |
| Supply | Non-original compatible replacement set |
Identify the exact Boiler 20 Duo model and confirm the AFS002 arrangement before ordering; the model name and bar count should both match the parts list. Bent or worn bars can hinder riddling and leave airflow uneven. Compare the original casting and approximate length when choosing the complete eleven-bar set.
